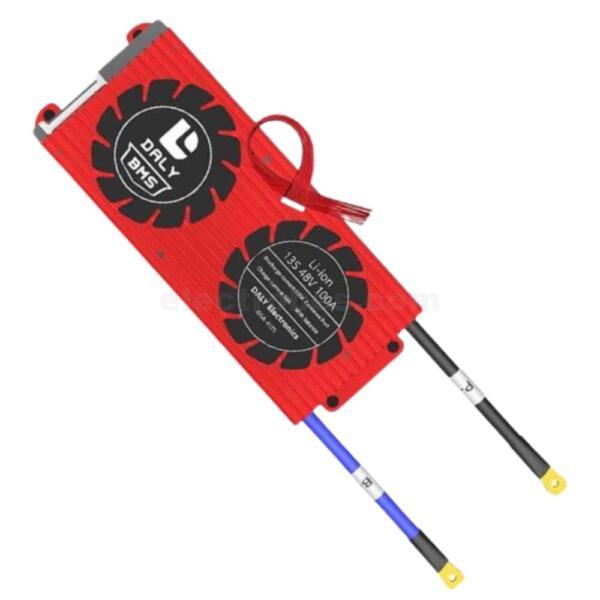

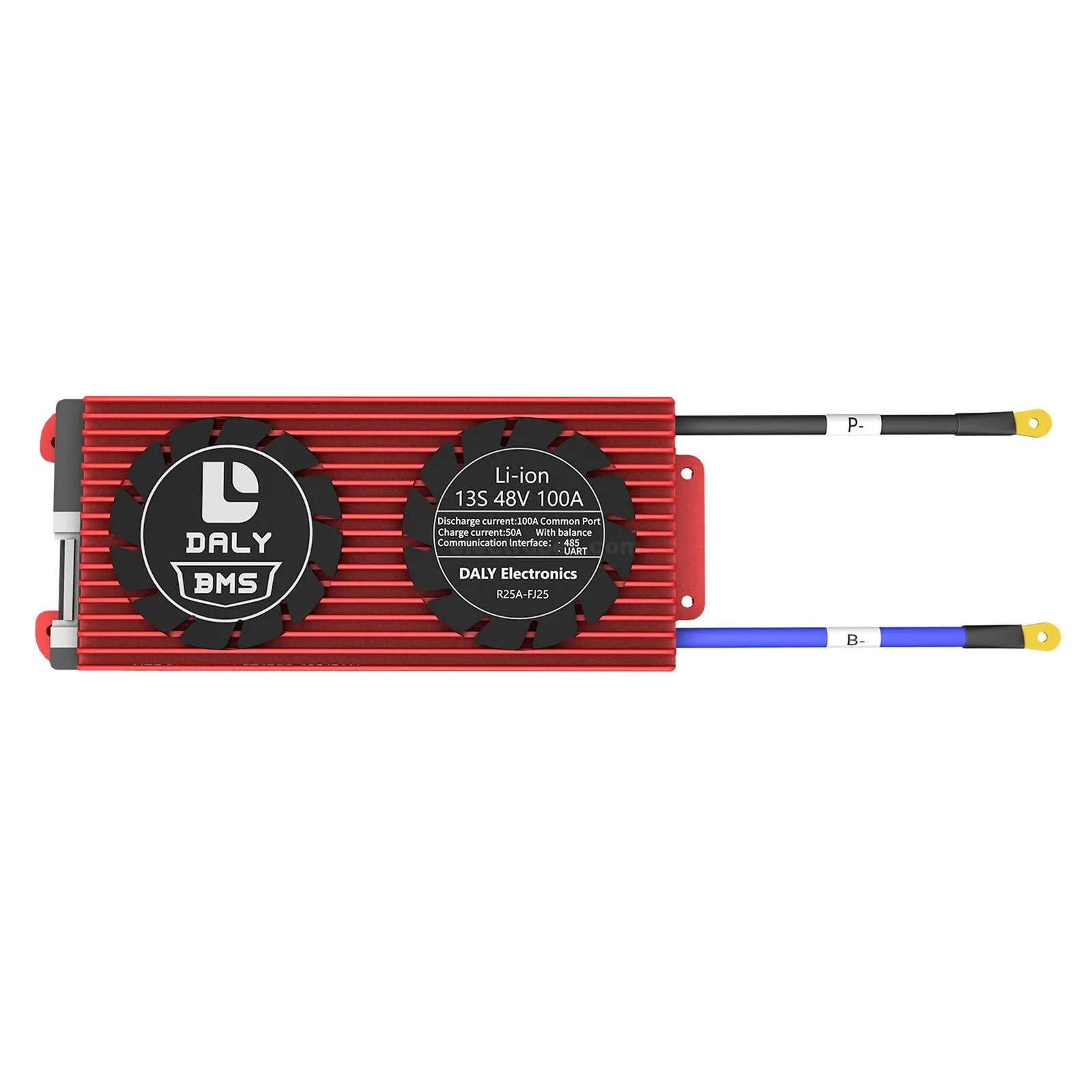

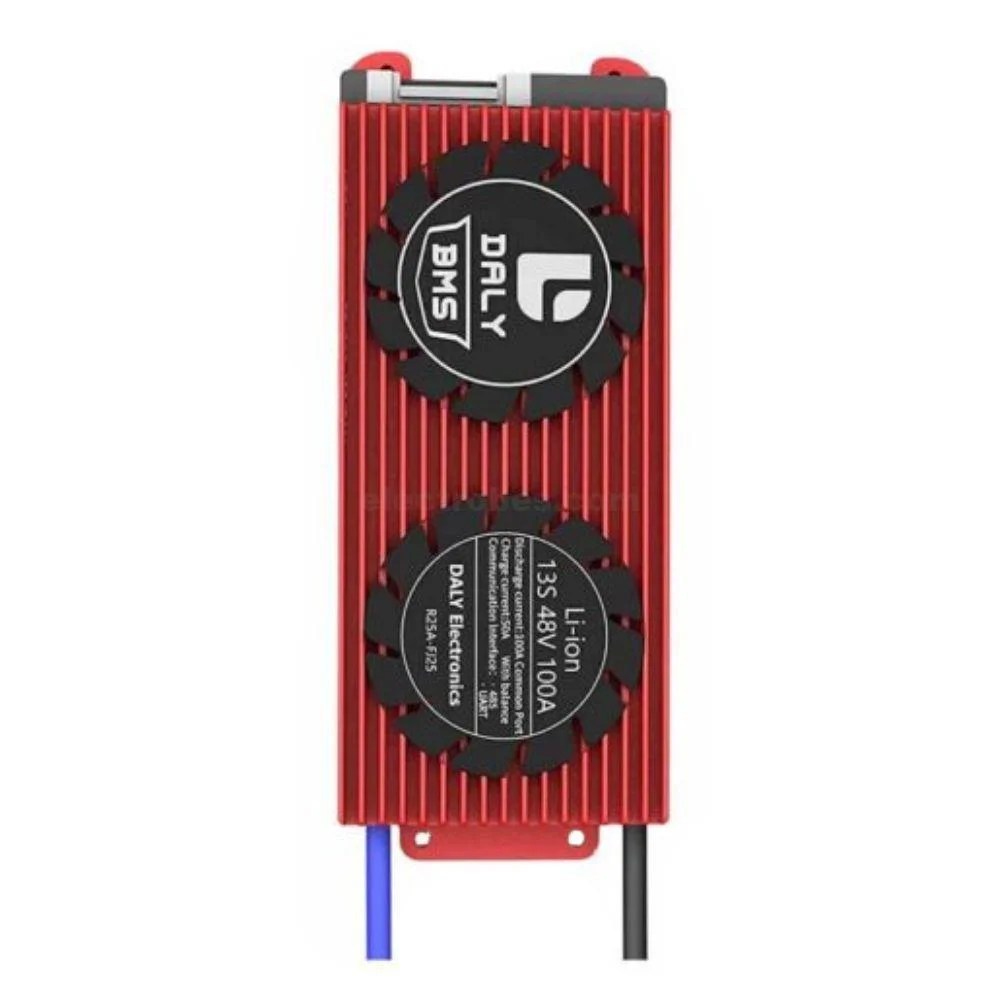

DALY BMS Li-ion 13S 48V 100A BMS Battery Management System for 18650 Battery Pack Balanced Charging Board

Original price was: ₨11,550.00.Current price is: ₨10,890.00.

DALY BMS Li-ion 13S 48V 100A BMS Battery Management System for 18650 Lithium ion Battery Pack With Balance Protection PCB Board with over-voltage protection charging module. Buy online in Pakistan

DALY BMS Li-ion 13S 48V 100A BMS Battery Management System for 18650 Lithium ion Battery Pack With Balance Protection
DL 13S 48V 100A PCB is used for 6 series Li-ion 48V battery pack. The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc. BMS manufactured by  high quality Mos and IC imported . Keep your battery long cycle service life time.
Introduction about this BMS:
This is a 13S fixed configuration basically it cannot be used for any other battery pack configurations. Because it is only a Lithium ion battery management system only. As a result that they cannot be used for LiFePo4 and Li-Metal or LTO batteries. It is strictly for Li-Ion battery packs only.
Over charge and over discharge protection:
The Li-ion battery pack will stop charge after the cell voltage reaches 4.25V and stop discharge when its voltage reaches 3V.
Temperature Protection:
In high temperatures the BMS ranges from 70℃ discharging battery protection.
Meanwhile in low temperatures the BMS ranges up to -20℃ battery protection.
Short circuit protection:
When there is a defect or damage to the circuit at same time the BMS will shut down the whole Battery.
Certifications Approved:
ISO/ FCC/ RoHS/ PSE and CE APPROVED
Applications:
Solar and RV, Electric bikes and Skateboard including camping boats and Power tools, Lawn moving and household energy storage systems etc.
What you will get:

13S Li-ion 100A rated voltage with 48V BMS

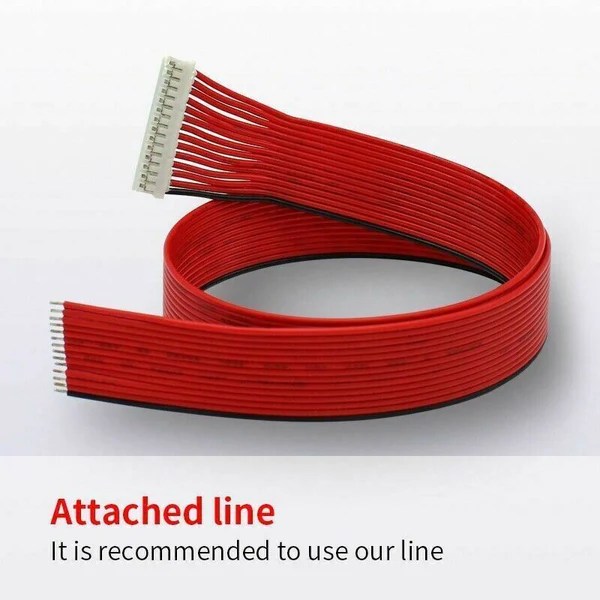

Balanced wire sense cable (14 Wire sense cable with connector)
Instruction Manual

Conclusion:
Most important that it is only a waterproof BMS available in lithium industry.
This BMS is also for all kinds of lithium-ion cells including 18650 ,21700,36500 cylindrical cells and prismatic cells.
