Creality CR-Scan RaptorX 3D Scanner for 3D Printing

Creality RaptorX 3D Scanner, Wireless Hybrid Blue Laser & NIR Scanner for 3D Printing, Industrial Scanner with 0.02mm+0.06mm/m Volume Accuracy, Fast Data Transmission and Processing from WiFi 6 AX6000

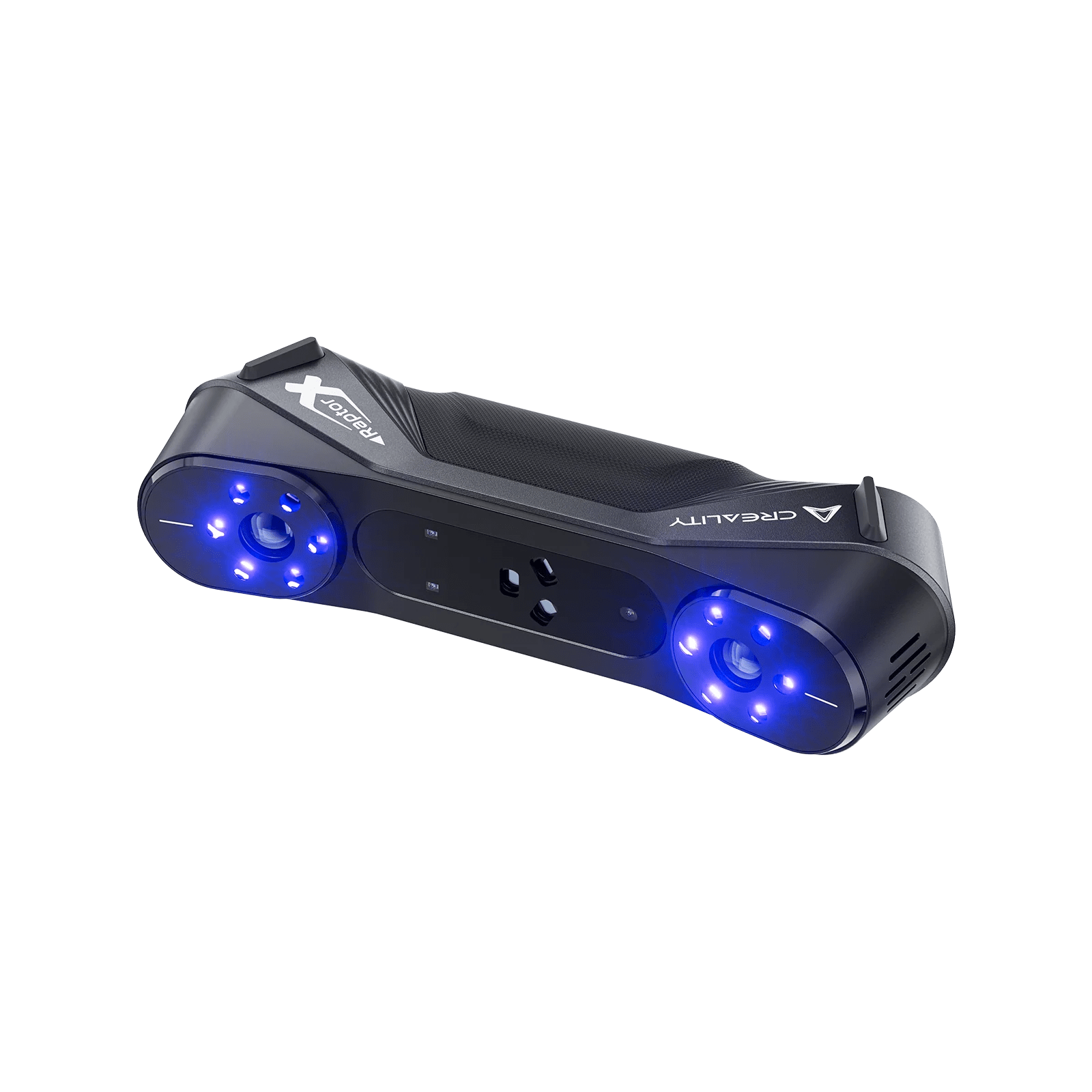

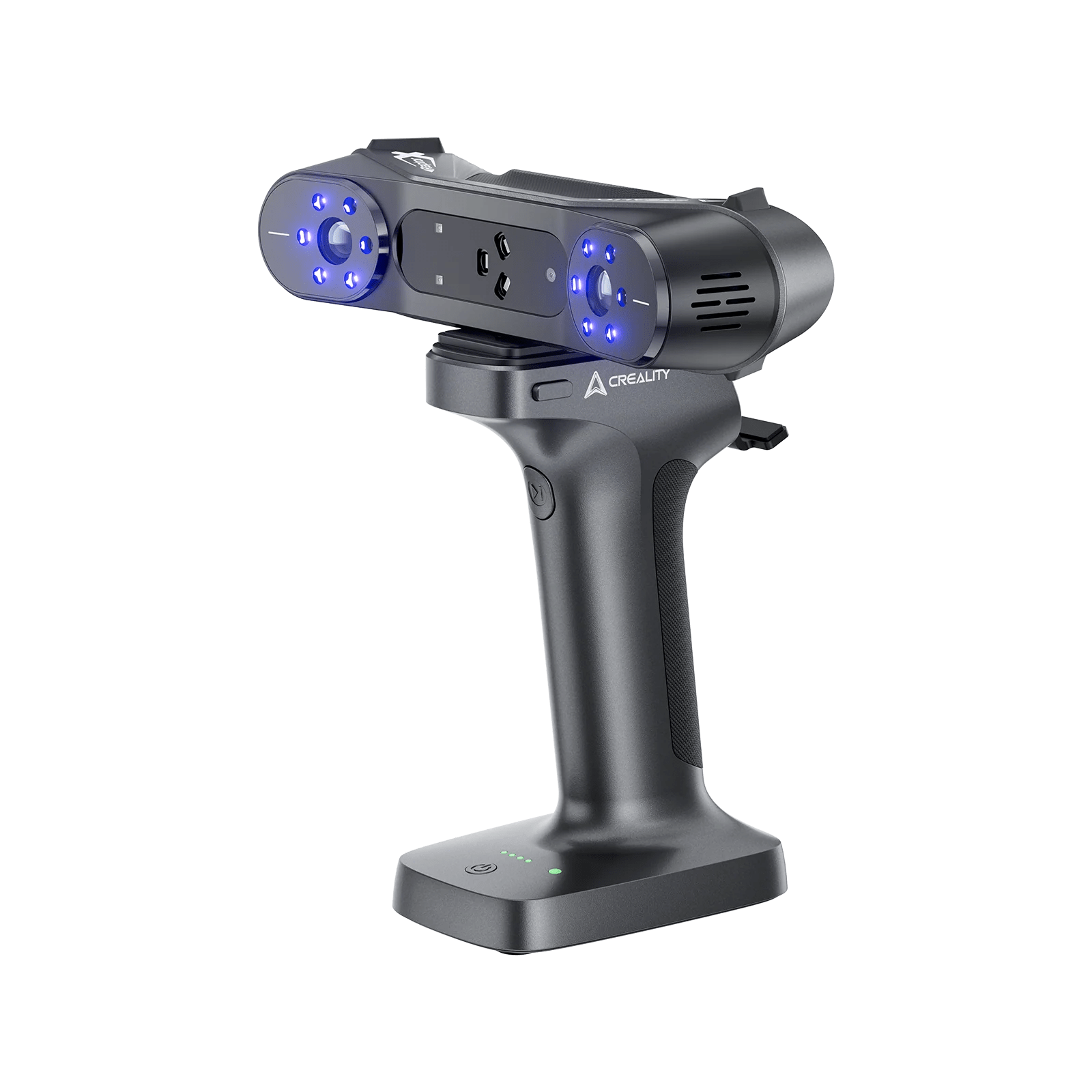

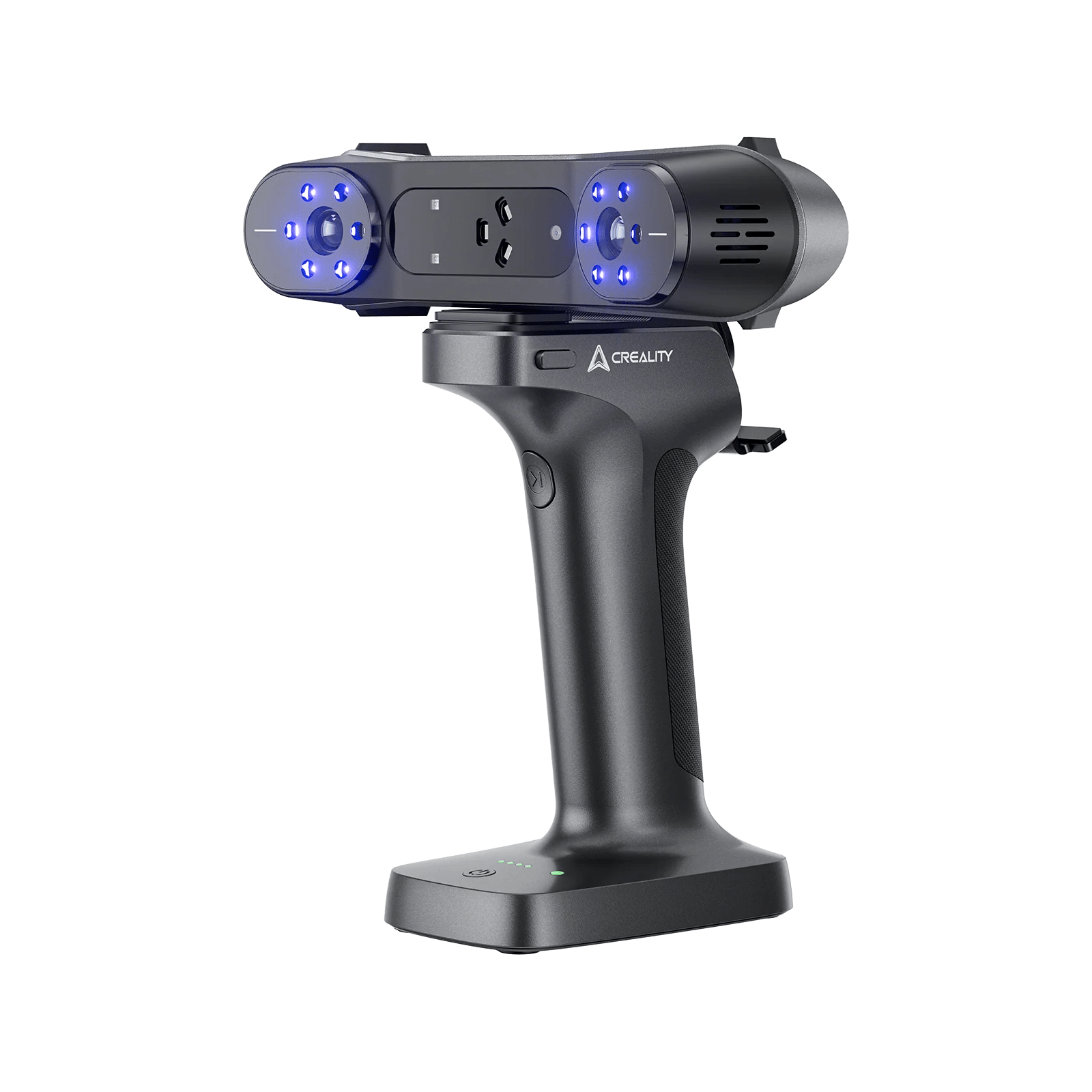

The Creality CR-Scan RaptorX 3D Scanner is a next-generation handheld 3D scanning solution that combines advanced blue laser line technology with infrared (NIR) structured light to deliver fast, accurate, and flexible scanning of objects ranging from tiny components to full-size industrial parts. Designed for creators, engineers, and professionals, the RaptorX offers wireless operation, high-speed data transmission, and exceptional precision, making it ideal for reverse engineering, quality inspection, 3D printing, cultural preservation, and digital content creation—all without the need for spray coatings on difficult surfaces like black or metallic materials.

Key Features:
🔹 Hybrid 3-Mode Scanning

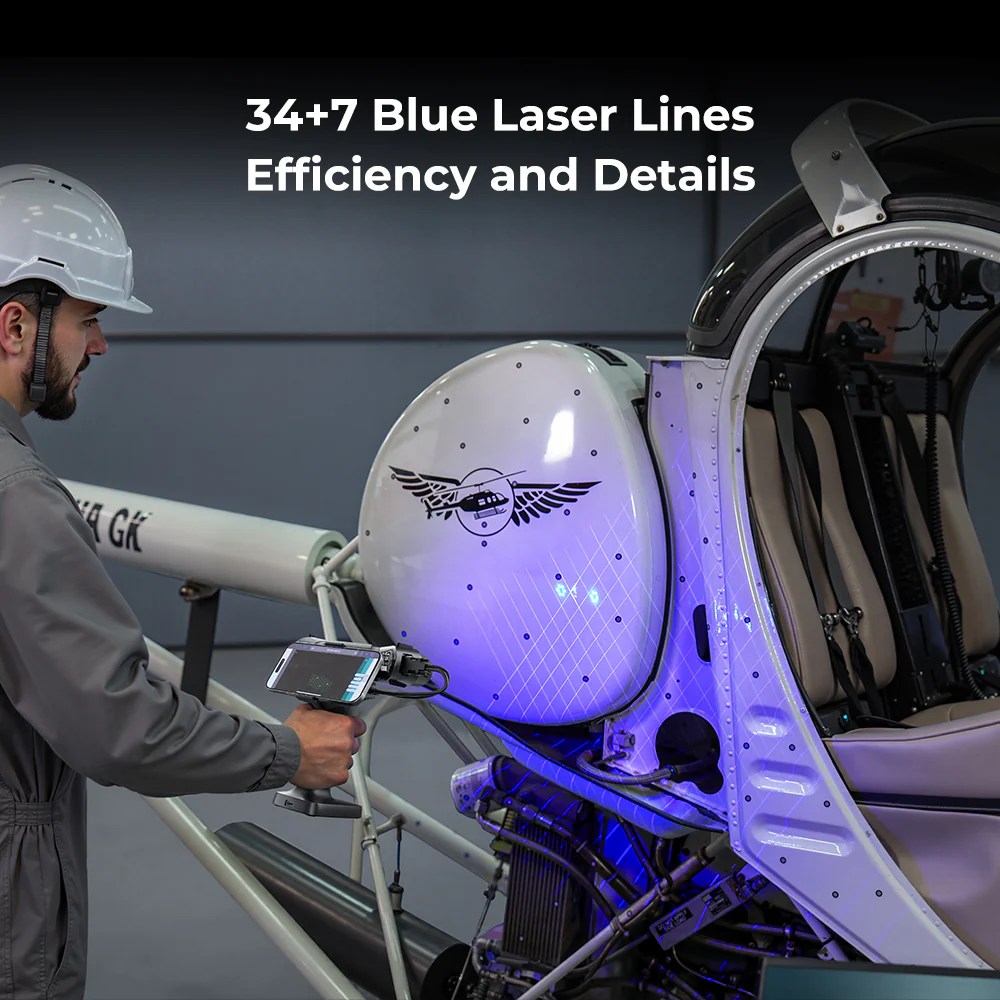

34 cross blue laser lines for scanning medium to large objects at high speed and volume.

7 parallel blue laser lines for high-resolution detail capture on fine features.

NIR structured light for markerless scanning stability and broad environmental adaptation.

🔹 High Precision and Speed

Accuracy: Up to 0.02 mm (laser mode) with volumetric precision ~0.02 mm + 0.06 mm/m.

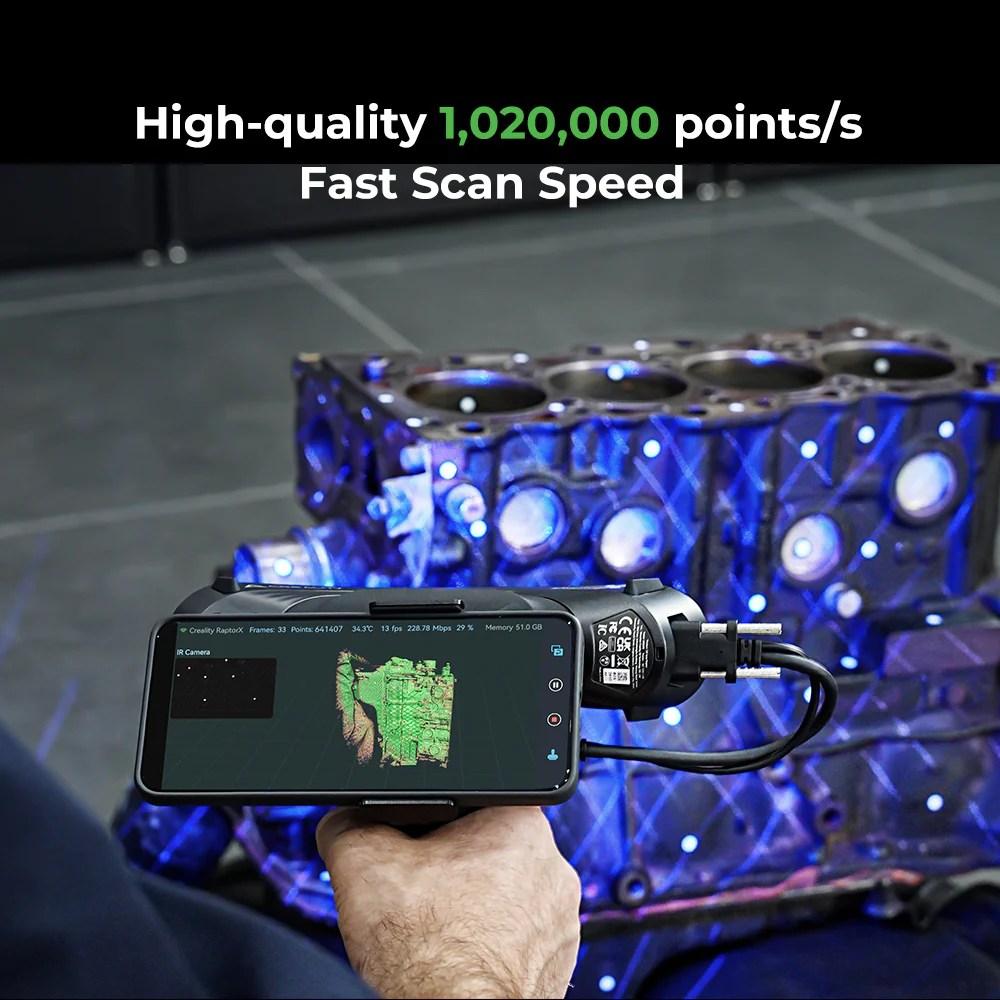

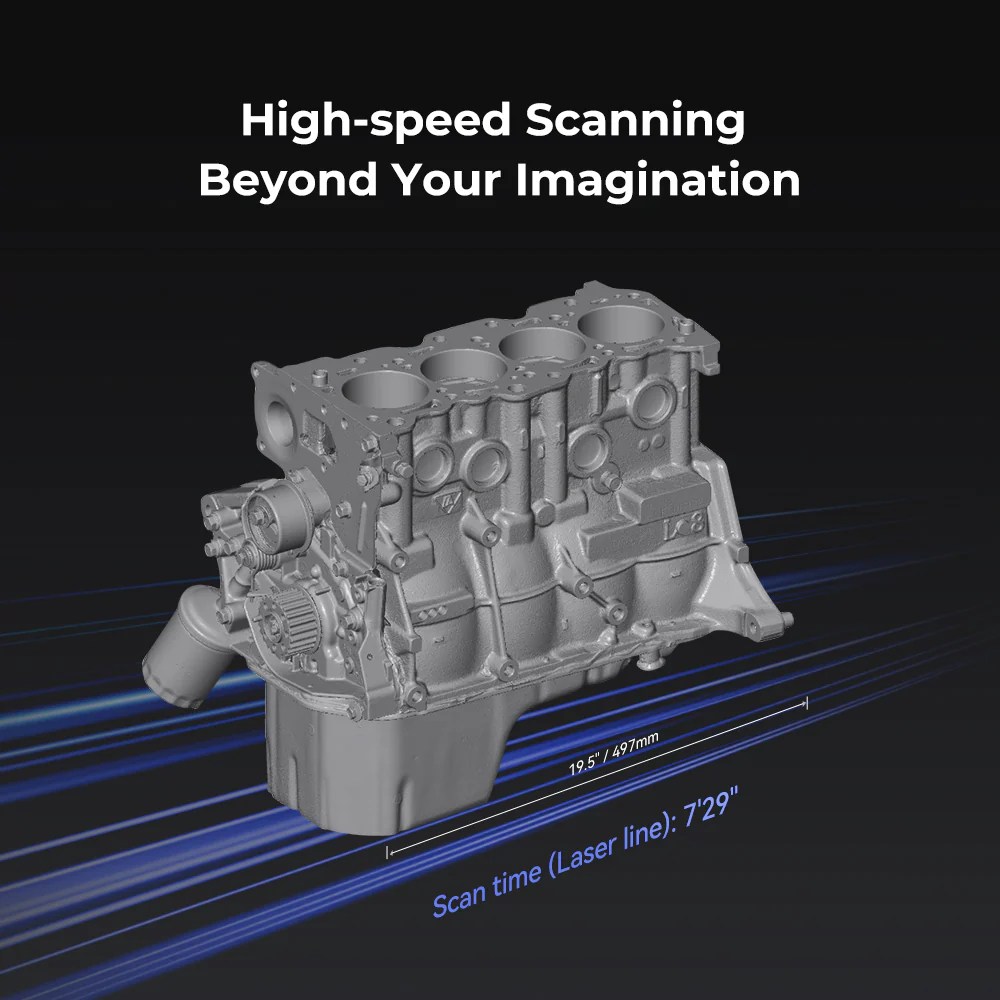

Scan Performance:• Up to ~1,020,000 measurements per second with 34 cross laser lines• Up to ~420,000 measurements per second with 7 parallel laser lines• NIR scanning up to ~3,580,000 measurements per second

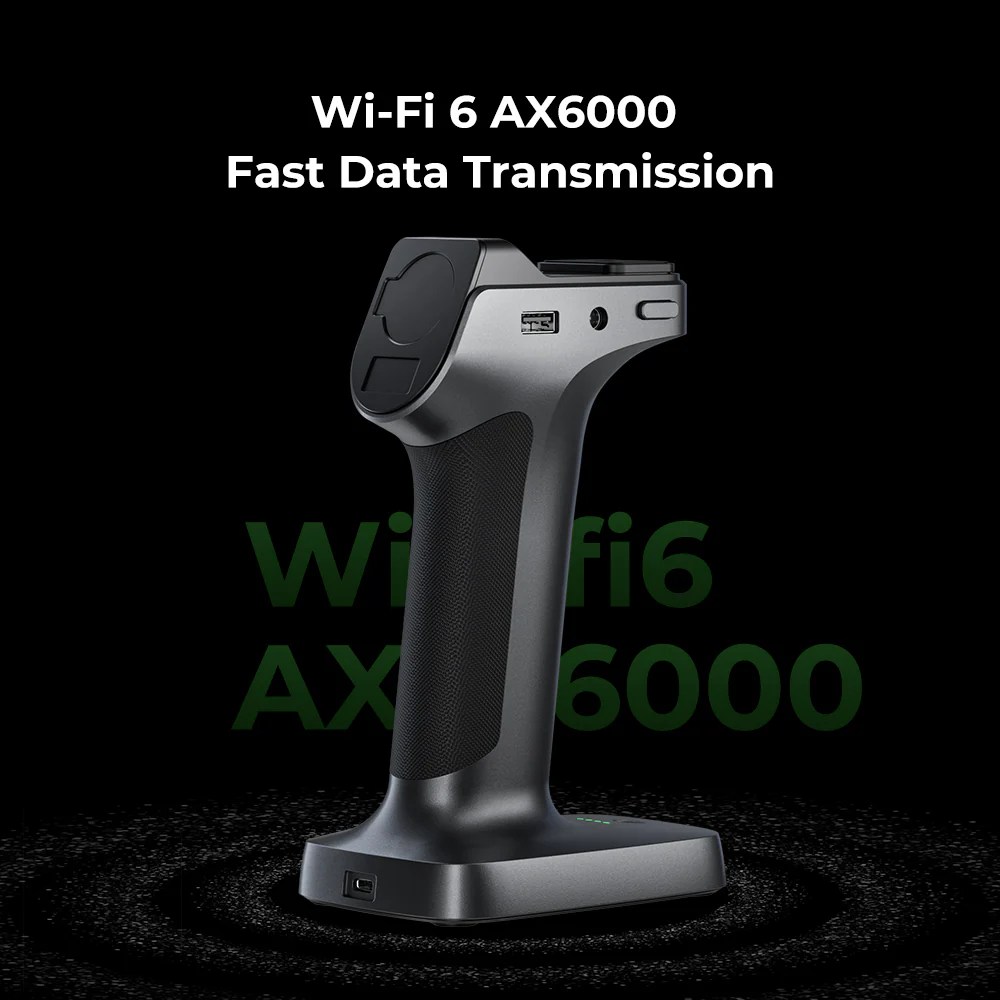

🔹 Wireless Operation & Fast Data Transfer

Built-in Wi-Fi 6 AX6000 for wireless transfers up to ~4.7 Gbps and low latency.

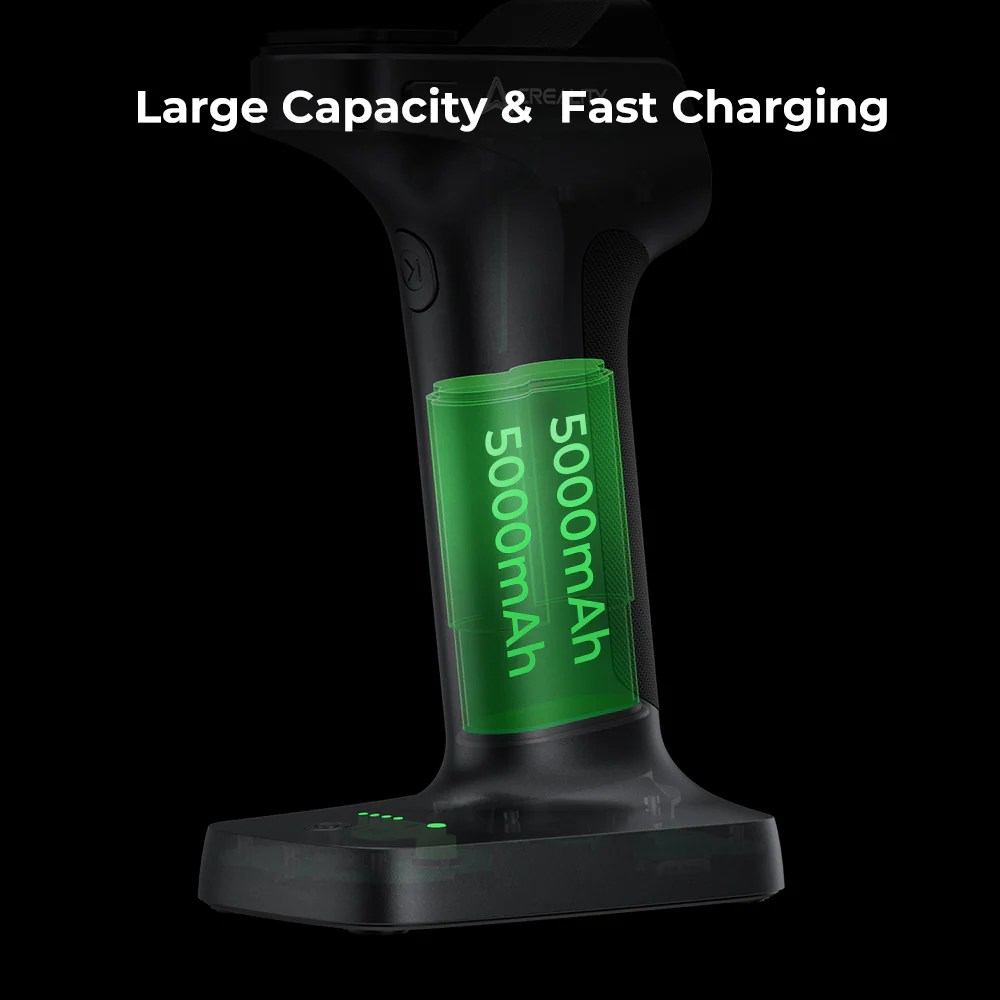

Large-capacity 35,400 mWh battery charges to ~80 % in ~1.5 hours and supports extended scanning sessions without tethering.

🔹 Wide Scanning Range

Object size: 5 × 5 × 5 mm³ up to 4000 × 4000 × 4000 mm³ (approx. 0.2–157 in).

Working distances:• 150–400 mm (7-line mode)• 200–600 mm (34 cross-line mode)• 170–1000 mm (NIR mode)

🔹 Color & Surface Versatility

24-bit full-color capture for rich texture data.

Can scan black, shiny, or metallic surfaces without spray coatings.

🔹 Smart Software & Compatibility

Proprietary CrealityScan software for point cloud editing, HD scanning, face/body scanning, and calibration tools.

Data exported to standard formats like STL, OBJ, PLY for direct 3D printing workflows.

Compatible with popular inspection and CAD software such as Geomagic Control X, Geomagic Design X, Verisurf Inspect, and more.

🔹 Ergonomic, Portable Design

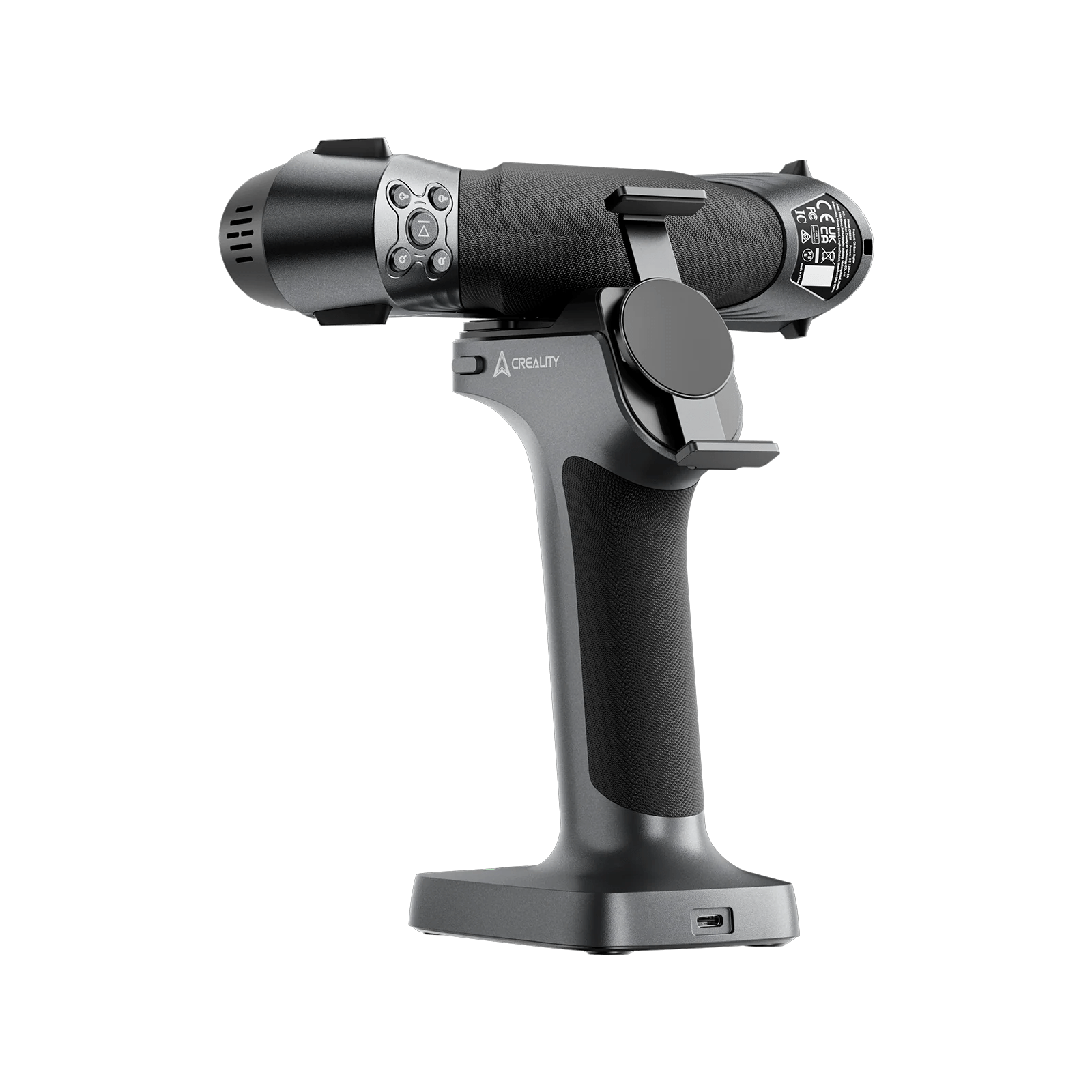

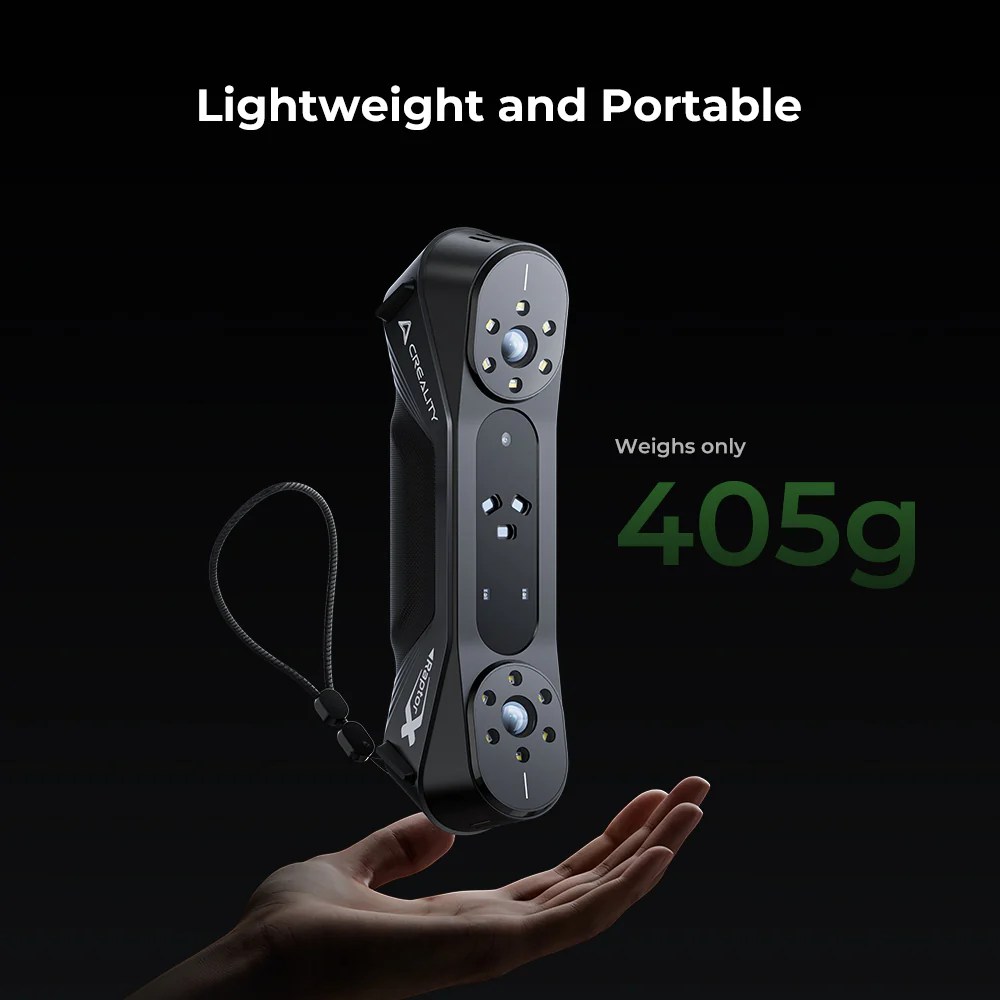

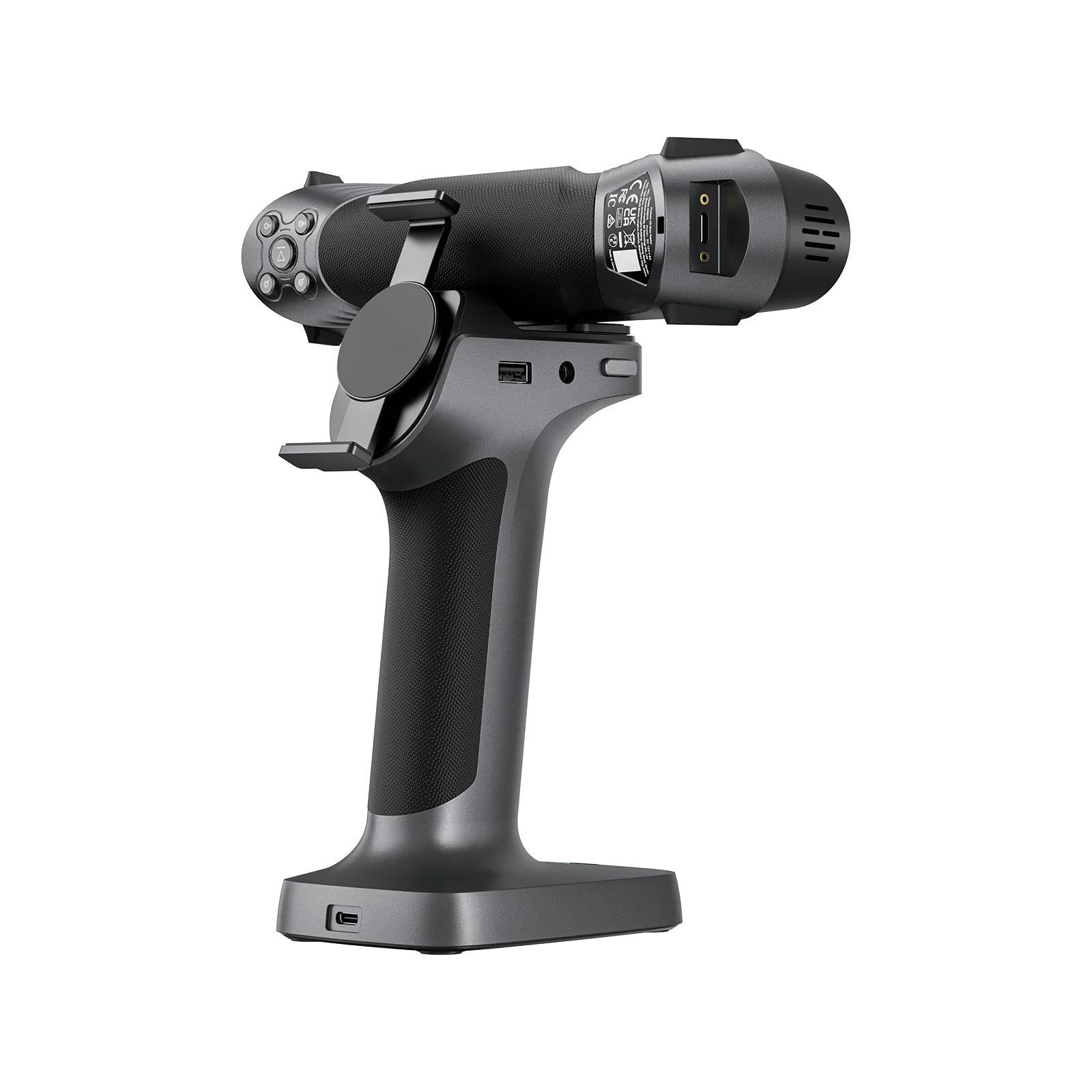

Lightweight and ergonomic handheld scanner with anti-slip grip and detachable cord.

Intuitive status LED indicators and tactile buttons for real-time feedback during scanning.

In-Box Contents:

Creality RaptorX 3D Scanner

Wireless scanning handle & battery pack

High-precision glass calibration plate

Wi-Fi 6 USB adapter & USB-C cable

Reflective markers and lanyard

Cleaning cloth and quick start guide

Ideal Use Cases:
✔ Rapid 3D scanning for 3D printing preparation✔ Reverse engineering and product design✔ Cultural preservation and artifact digitization✔ Industrial inspection and quality control✔ Art, animation, and VR/AR asset creation
