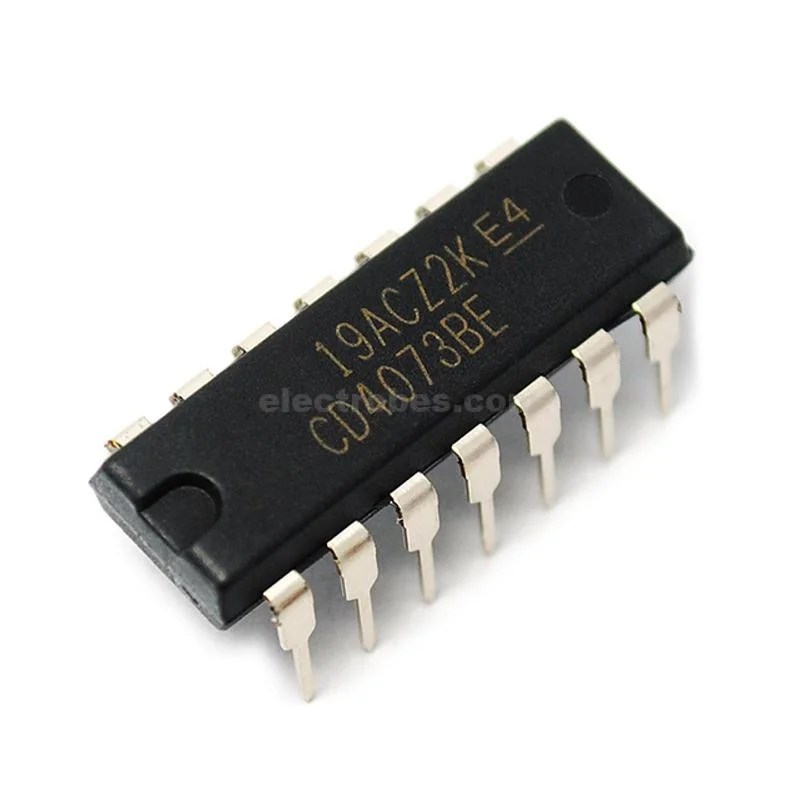

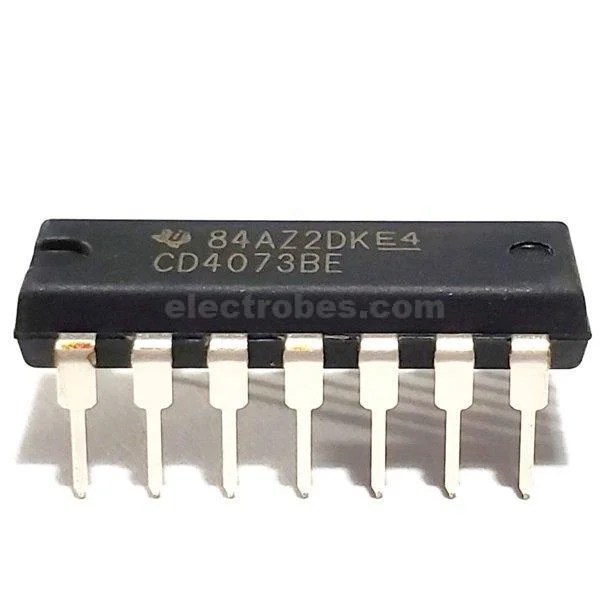

CD4073 CMOS Triple 3-Input AND Gate Breadboard-Friendly IC DIP-14

₨54.00

The CD4073BE is a 3-input CMOS Triple AND Gate provides the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates.

Features:

Medium-Speed Operation – tPLH, tPHL= 60 ns (typ.) at VDD= 10 V
100% tested for quiescent current at 20 V
Maximum input current of 1 µA at 18 V over full package-temperature range: 100nA at 18 V and 25°C
Noise margin (full package-temperature range) =

1 V at VDD= 5 V
2 V at VDD= 10 V
2.5 V at VDD= 15 V

Standardized, symmetrical output characteristics
5-V, 10-V, and 15-V parametric ratings
Meets all requirements of JEDEC Tentative Standard No. 13B, “Standard Specifications for Description of ‘B’ Series CMOS Devices”
