CD4049 Hex Inverter Buffer IC

₨36.00

CD4049 is a general purpose Hex Inverter Buffer IC. CD4049 holds six inverter gates on a single package. The IC works on the voltage range from 3V to 15V excessive voltage more than 15V will destroy the IC. So provide input voltage in the range of 3V to 15V. The IC invert the binary input i-e if we apply 1 at input it will out 0 and vice versa

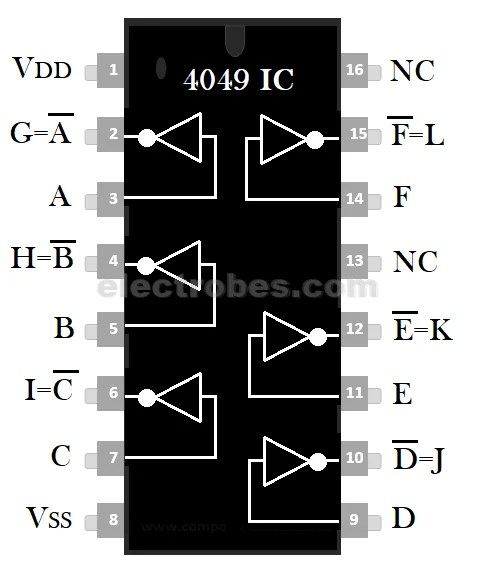

Pin Configuration

Pin Number
Pin Name
I/O
Description

1
VDD
–
Positive supply for IC

2
G
O
Inverting output 1 for input 1

3
A
I
Input 1

4
H
O
Inverting output 2 for input 2

5
B
I
Input 2

6
I
O
Inverting output 3 for input 3

7
C
I
Input 3

8
VSS
–
Negative supply for IC

9
D
I
Input 4

10
J
O
Inverting output 4 for input 4

11
E
I
Input 5

12
K
O
Inverting output 5 for input 5

13
NC
–
Not connected

14
F
I
Input 6

15
L
O
Inverting output 6 for input 6

16
NC
–
Not connected

Features

Mostly used in voltage multiplier circuit
Accept High input supply voltage
Used to low the high logic levels
High sink current for driving two TTL loads
Special input protection allows input voltages greater than VDD
100% Tested for Quiescent Current at 20 V
Available packages: PDIP, SOIC, TSSOP, SO with 16 number of pins
Maximum input current of 1uA at 18v over full package temperature range
Compatible in use with breadboard.

Datasheet :
http://www.ti.com/lit/ds/symlink/cd4050b.pdf
