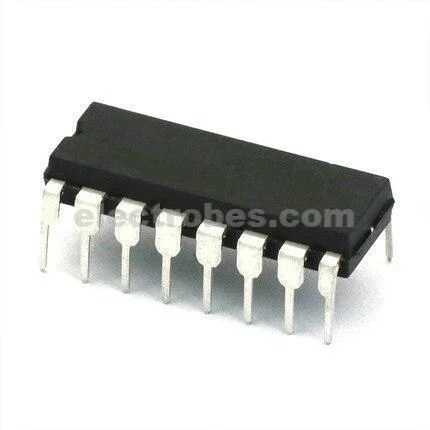

CD4033 CMOS Decade Counter Divider IC

₨108.00

Logic Family / Base Number: CD4033
Counter Type: Decade / Divider
Clock Frequency: 16MHz
Count Maximum: 10 Logic
Case Style: DIP
No. of Pins: 16Pins
Supply Voltage Min: 3V
Supply Voltage Max: 18V
Logic IC Family: CD4000
Logic IC Base Number: 4033
Operating Temperature Min: -55°C
Operating Temperature Max: 125°C
Product Range: CD4000 LOGIC Series

The CD4033BE is a CMOS Decade Counter/Divider with decoded 7-segment display outputs and ripple blanking. It consists of a 5-stage Johnson decade counter and an output decoder which converts the Johnson code to a 7-segment decoded output for driving one stage in a numerical display. It is particularly advantageous in display applications where low power dissipation is important. Inputs common to both types are clock, reset and clock inhibit, common outputs are carry out and the seven decoded outputs (a, b, c, d, e, f, g). Signals peculiar to the CD4033B are ripple-blanking input and lamp test input and a ripple-blanking output. A high reset signal clears the decade counter to its zero count. The counter is advanced one count at the positive clock signal transition if the clock inhibit signal is low.
Features:

Counter and 7-segment decoding in one package
Easily interfaced with 7-segment display types
100% Tested for quiescent current at 20V
Standardized symmetrical output characteristics
Schmitt-triggered clock inputs

Applications
Consumer Electronics, Clock & Timing
