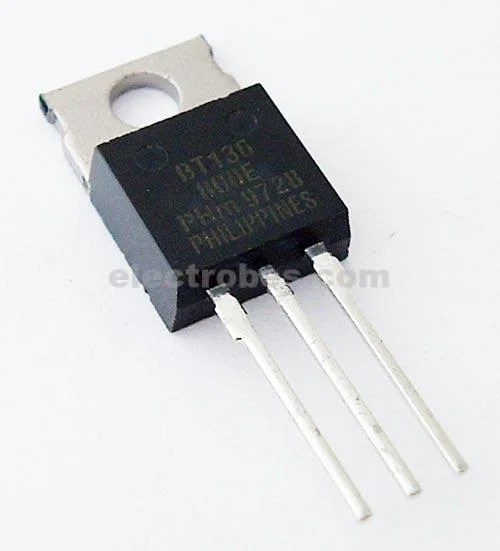

BT136 BT-136 TRIAC 600E Switching Transistor
, ,

BT136 BT-136 TRIAC 600E Switching Transistor

₨48.00

The BT136 is a four-quadrant TRIAC from NXP that can handle medium power switching of loads up to 600V and 16A. With the ability to work in four quadrants, it can switch both positive and negative currents and operate with a positive or negative gate current.

SKU: 0239 Categories: , ,

Pin Configuration

Pin Number
Pin Name
Description

1
Main Terminal  1
Connected to Phase or neutral of AC mains

2
Main Terminal 2
Connected to Phase or neutral of AC mains

3
Gate
Used to trigger the SCR.

Features:

Maximum Terminal current: 4A
On-state Gate voltage: 1.4V
Gate trigger current: 10mA
Max Terminal Voltage is 600 V
Holding current: 2.2mA
Latching current: 4mA
Available in To-220 Package

Applications

AC Light dimmers
Strode lights
AC motor speed control
Noise coupling circuits
Controlling AC loads using MCU/MPU
Ac/DC Power control

Datasheet:
BT136 TRIAC Datasheet
