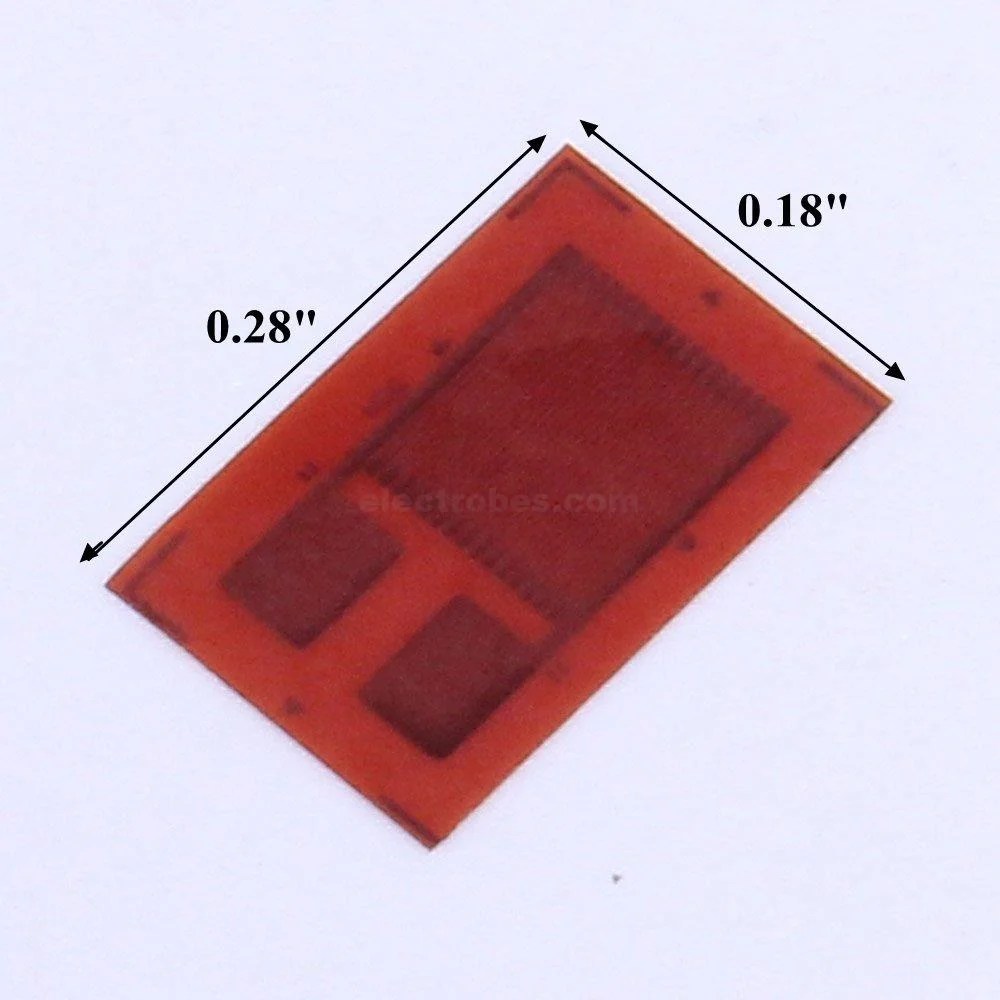

BF350-3AA Strain Gauge Resistive Pressure Force Sensor
A resistive strain gauge sensor with a 350 ohm nominal resistance which varies when a force is applied. By measuring the change in the sensors resistance a measurement of the force applied to it can be obtained. Note that strain gauges exhibit small changes in resistance and so this sensor should be used in a Wheatstone bridge configuration. If using with a microcontroller such as an Arduino we also recommend using our HX711 digital bridge sensor interface module.
Features:
Nominal resistance(Ohm): 350
Tolerance: <±0.1%
Gauge factor: 2.00~2.20
Gauge factor resistance: <±1%
Strain limit: 2.0%
Fatigue life: >10
Metal foil: constantan alloy
Working temperature range: -30~+80℃
Temperature compensation: Aluminium(23)
Gauge Grid(mm) Dimensions(L×M): 3.2 x 3.06
Gauge Creep Code: M6 to O6
Application:
