Bambu Lab X1E Combo with AMS FDM 3D Printer 16-color printing option, Built-in camera, Upto 20000 mm/s² Acceleration

Bambu Lab X1E Combo with AMS CoreXY FDM 3D Printer 16-color printing option, Built-in camera, Upto 20000 mm/s² Acceleration
The Bambu Lab X1E is a technologically advanced 3D printer that stands out for its superior connectivity, off-cloud operation, and robust filtration system. It offers an actively controlled chamber temperature to enhance print quality, especially with challenging materials. The high nozzle temperature allows for the printing of high-performance materials. Its CoreXY structure ensures high-speed printing while maintaining quality. Additionally, the X1E features AI failure detection to minimize wastage and intelligent filament management for multi-material printing. This printer is designed for professionals seeking efficient and high-quality 3D printing solutions.
Key features of Bambu Lab X1E:

Enhanced Connection Options: Boasting a stable Ethernet and WPA2-Enterprise Authentication Wi-Fi, ensuring robust network communication even in complex environments.
Off-Cloud Operation: Operate independently within your local network without a connection to Bambu Cloud Service, allowing for seamless LAN communication.
Heavy Duty Air Filtration: Effective filtration of particulates and VOCs, ensuring a safe and odor-reduced printing environment.
Controlled Chamber Temperature: Actively heats and regulates chamber temperature to improve print quality, especially with filaments prone to warping like ABS and PC.
High Nozzle Temperature: A maximum of 320°C, enabling the printing of high-performance materials such as PPA-CF/GF, PPS, and PPS-CF.
Robust High-Speed CoreXY Structure: Ensures super fast and continuous high-speed printing, significantly reducing overall print time.
Vibration and Extrusion Compensation: Guarantees stable and quality prints even at higher speeds by actively compensating for XY-axis vibrations and extrusion issues.
AI Failure Detection: Reduces filament wastage and machine downtime by detecting first-layer imperfections and spaghetti failures.
Intelligent Filament Management: Supports auto filament reload and multi-material printing, enhancing surface quality and enabling multi-color printing.

Technical Documents:
Bambu Lab X1E Datasheet and Manual

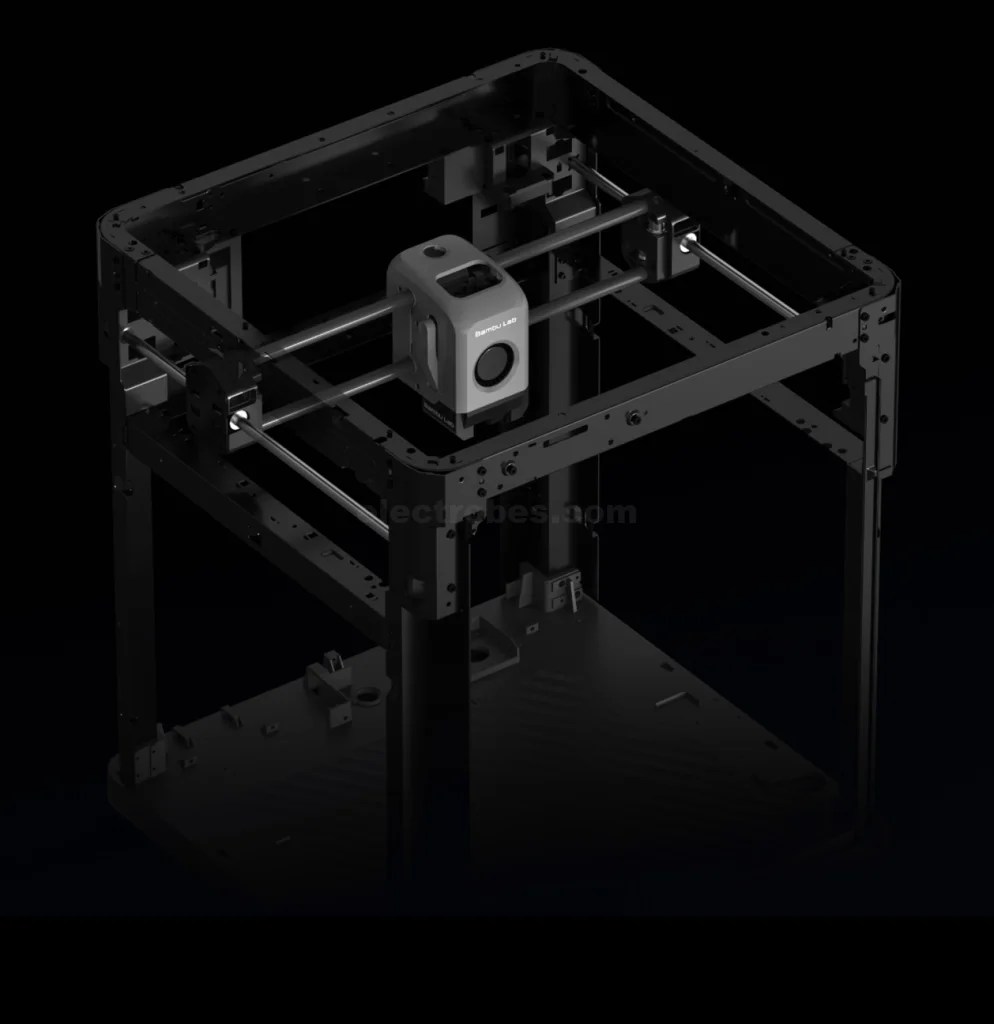

Robust High Speed CoreXY
Super Fast And Rigid Structure For Continuous High Speed Printing
The superior carbon-fiber rods in the CoreXY motion structure enable the X1E to achieve a toolhead acceleration of 20,000 mm/s² by reducing the weight of moving parts. This faster acceleration allows the X1E to maintain its maximum travel speed of 500 mm/s for longer periods, significantly reducing overall print time.

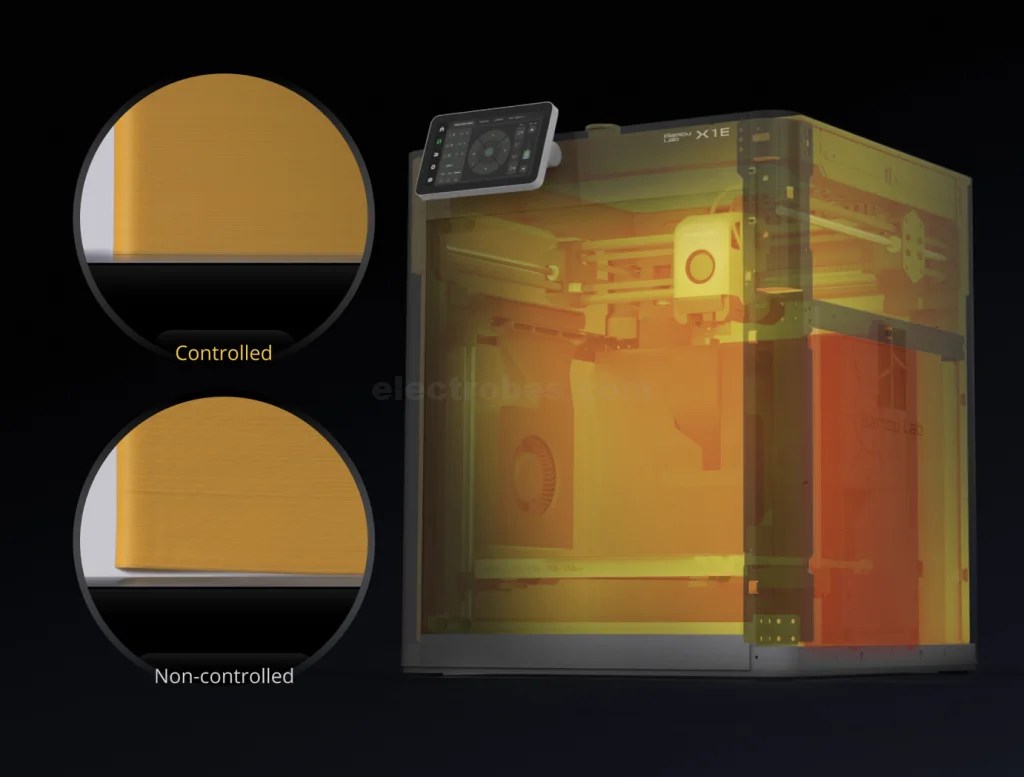

Active Heating And Controlled Chamber Temp
Reduce Warping, Improve Layer Bonding
The X1E can actively heat and regulate the chamber temperature. Accurately controlled chamber temperature (up to 60°C or 140°F) improves print quality, especially for filaments prone to warping such as ABS and PC.

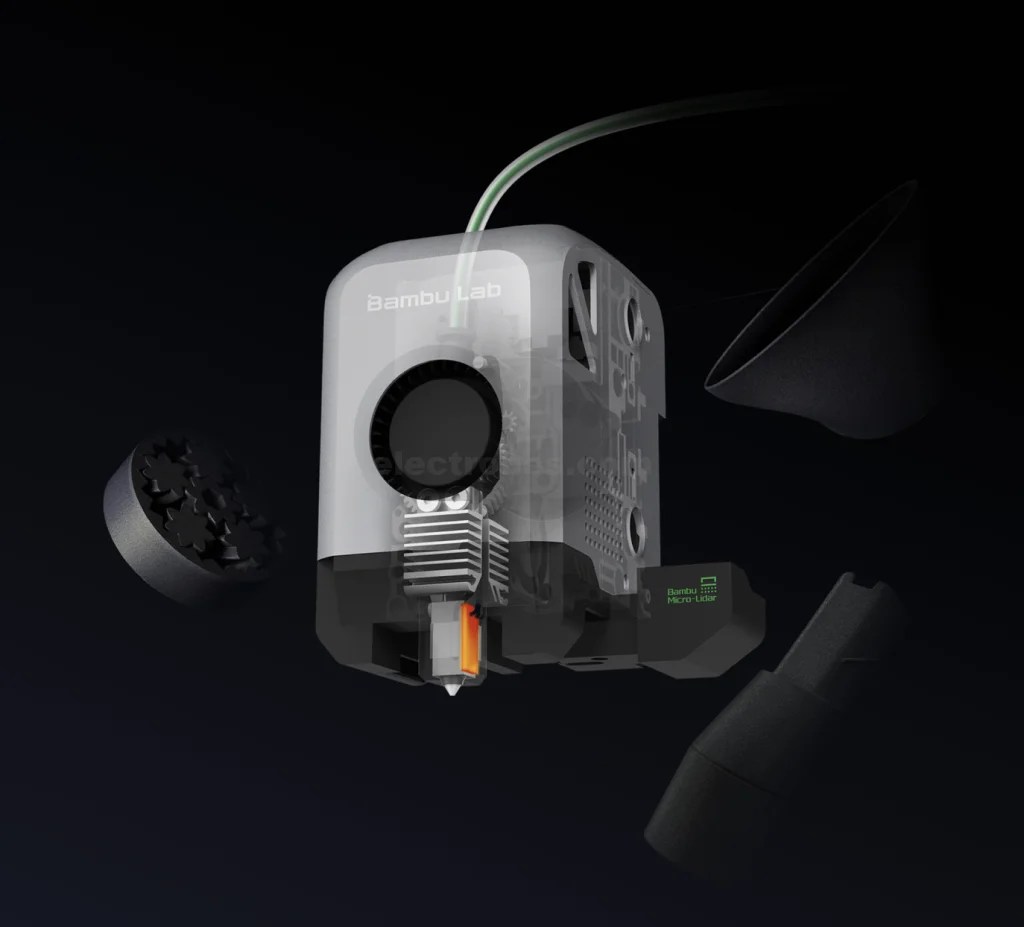

320 °C (608 °F) Nozzle Temp
More Heat For Higher Temperature Materials
Higher nozzle temperature make possible to print higher performance materials such as PPA-CF/GF, PPS and PPS-CF. These new materials have better dimensional stability, heat resistance and mechanical performance.

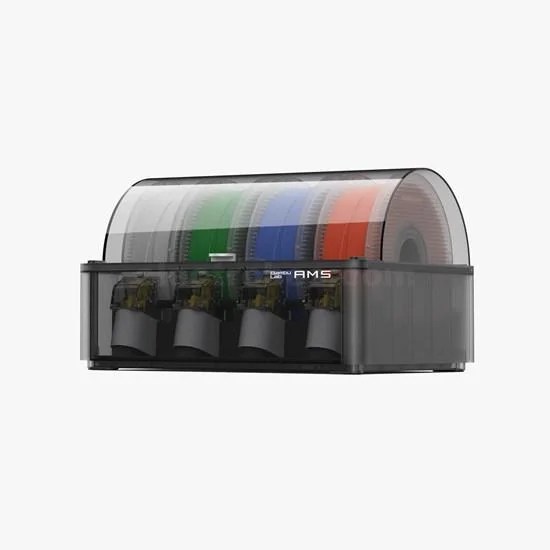

Intelligent Filament Management
Supports Auto Filament Reload and Enables Multi-Material Printing with Support Material for Improved Surface Quality
X1E can parallel connect 4 Bambu AMS systems to print with up to 16 spools of filaments, good for printing dedicated support materials for seamless surface and printing multi-color. The AMS system also supports automatic filaments reload, to used up all filament on one spool before switching to the next.

Comparison with X1 Carbon





X1E
X1 Carbon

Wi-Fi
Frequency Range: 2400 MHz – 2483.5 MHz
WPA2-Enterprise:
EAP-PEAP
EAP-TLS
TAP-TTLS
Frequency Range: 2400 MHz – 2483.5 MHz
WPA2-Enterprise: No

Ethernet
Socket: RJ45
Speed: 100 Mbps / Full Duplex
N/A

Supported Filaments
PLA, PETG, TPU, PVA, BVOH: Optimal
ABS, ASA, PC, PA, PET: Superior
Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA: Superior
PPA-CF/GF, PPS, PPS-CF/GF: Ideal
PLA, PETG, TPU, PVA, BVOH: Optimal
ABS, ASA, PC, PA, PET: Ideal
Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA: Ideal
PPA-CF/GF, PPS, PPS-CF/GF: No

Heating
Active Chamber Heating: Yes
Maximum Chamber Control Temperature: 60℃
Active Chamber Heating: N/A
Maximum Chamber Control Temperature: N/A

Air Purification
Pre-filter grade: G3
HEPA filter grade: H12
Activated Carbon Filter type: Coconut Shell Granulated
VOC Filtration: Optimal
Particulate Matter Filtration: Yes
Pre-filter grade: None
HEPA filter grade: None
Activated Carbon Filter type: Coal Based Pellets
VOC Filtration: Capable
Particulate Matter Filtration: No

Network Control
Ethernet: Yes
Wireless Network: Wi-Fi
Network Kill Switch: Wi-Fi & Ethernet
Removable Network Module: Yes
802.1X Network Access Control: Yes
Ethernet: No
Wireless Network: Wi-Fi
Network Kill Switch: No
Removable Network Module: No
802.1X Network Access Control: No

Toolhead
Hot End: All-Metal
Nozzle: Hardened Steel
Max Hot End Temperature: 320℃
Hot End: All-Metal
Nozzle: Hardened Steel
Max Hot End Temperature: 300℃

Heatbed
Build Plate: Flexible Steel Plate
Build Plate Surface (Included): Bambu Smooth PEI Plate
Max Build Plate Temperature: 110℃@220V， 120℃@110V
Build Plate: Flexible Steel Plate
Build Plate Surface (Included): Bambu Cool Plate, Bambu Engineering Plate,
Max Build Plate Temperature: 110℃@220V， 120℃@110V

Speed
Max Speed of Toolhead: 500 mm/s
Max Acceleration of Toolhead: 20000 mm/s2
Max Speed of Toolhead: 500 mm/s
Max Acceleration of Toolhead: 20000 mm/s2

Sensors
Bambu Micro Lidar: Yes
Chamber Monitoring Camera: 1920*1080 Included
Bambu Micro Lidar: Yes
Chamber Monitoring Camera: 1920*1080 Included

Physical Dimensions
Dimensions: 389*389*457 mm³
Net Weight: 16kg
Dimensions: 389*389*457 mm³
Net Weight: 16kg
