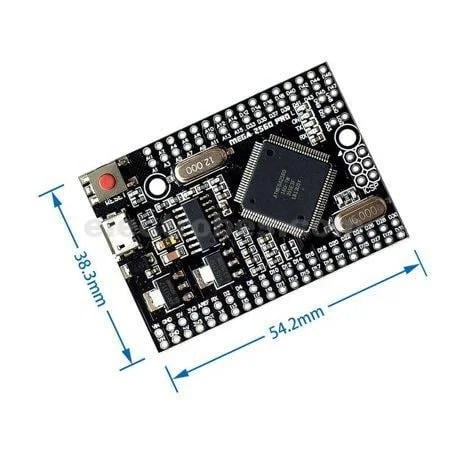

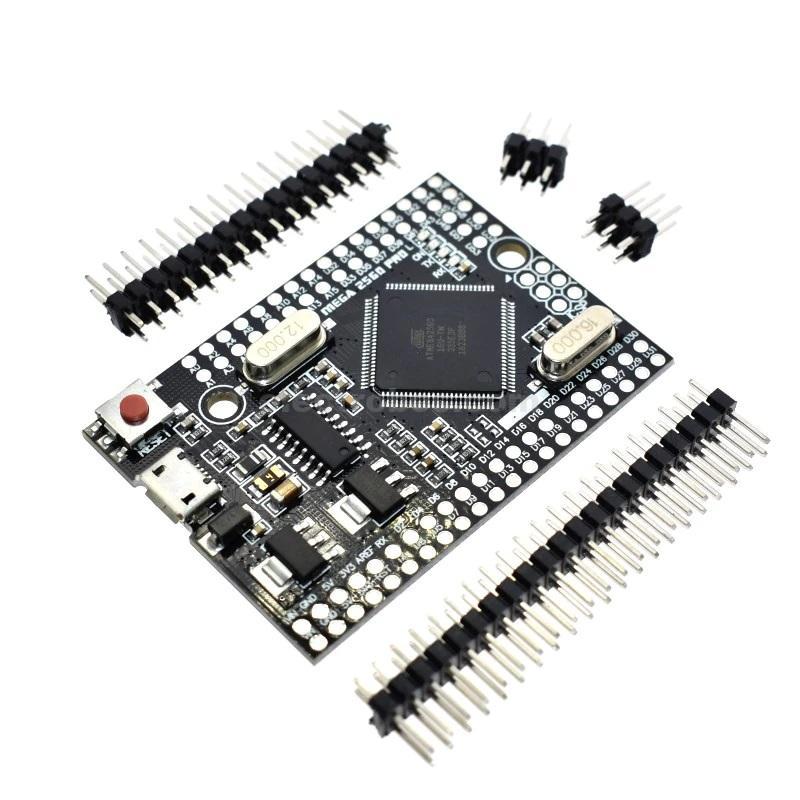

Arduino MEGA 2560 PRO Mini Compatible With ATMEGA2560-16AU And CH340G

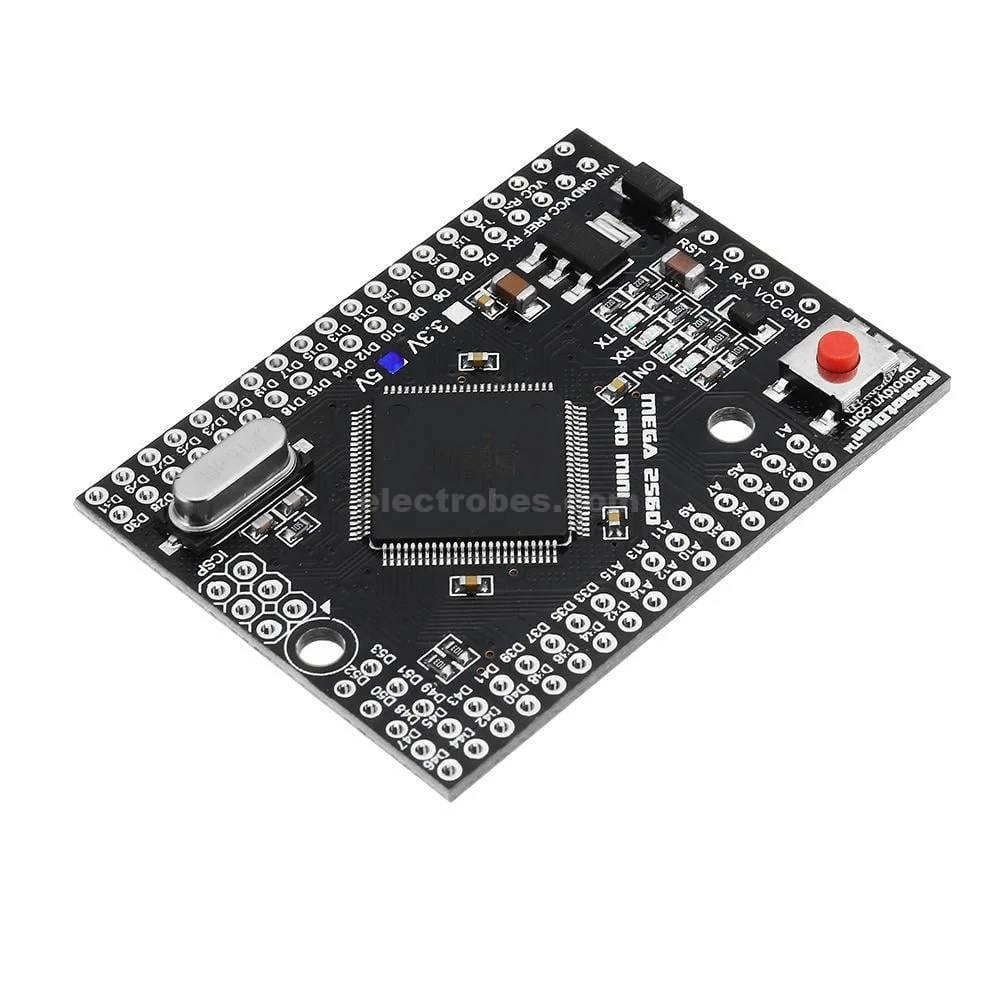

Arduino MEGA 2560 PRO Mini Compatible With ATMEGA2560-16AU And CH340G - Image 2

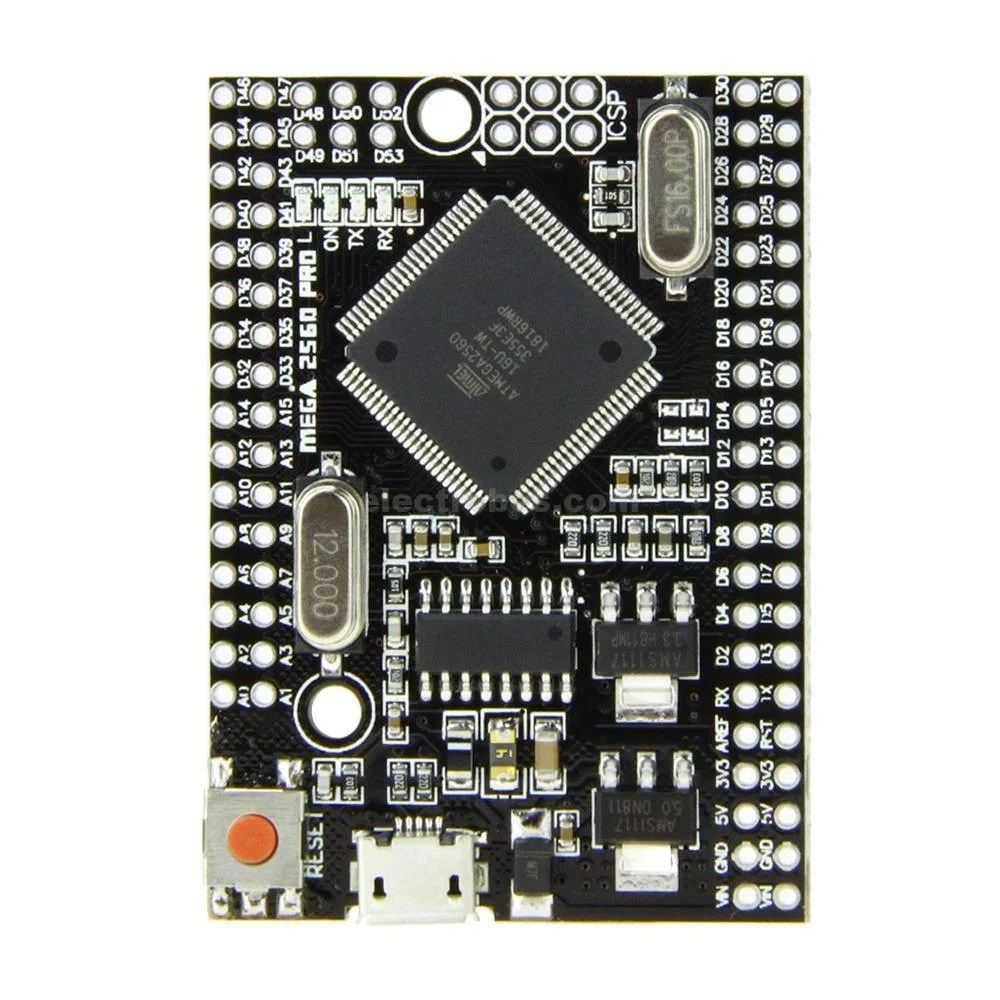

Arduino MEGA 2560 PRO Mini Compatible With ATMEGA2560-16AU And CH340G - Image 3

Arduino MEGA 2560 PRO Mini Compatible With ATMEGA2560-16AU And CH340G

₨3,850.00

This board is the compact microcontroller fully compatible to the ever-popular Arduino Mega 2560.
It features a genuine Atmel ATmega2560 running at 16Mhz and leverages a CH340G for UART/USB interface to a micro USB.
Equipped with 54 (fifty-four) Digital I/O and 16 (sixteen) Analogue I/O it provides plenty of interfacing options.

SKU: 1122 Categories: Compatibles for Arduino, Mainboards, Modules and Breakout Boards

Description
Reviews (0)

Arduino MEGA 2560 PRO Mini With Embedded USB CH340G ATMEGA2560-16AU Chip
Features:

Item type: MEGA 2560 Pro Embedded USB CH340G ATMEGA2560-16AU Chip
Form factor-Mega PRO
Microcontroller-ATmega 2560 (16 MHz)
USB-UART-CH340G interface (12 MHz)
input voltage-6-9 V (peak 18 V)
PC-Micro USB connection socket
70 digital I / O
16 analog entries
14 PWM
4 UART bus
The board used the CH340G chip as a UART-USB converter. When you work on the 12 MHz frequency, giving a stable result of the exchange of data (it is necessary to install drivers in the computer).
Mega PRO (Embed) 2560 CH340G / ATmega2560-connects to the computer through the micro USB cable (used for almost all Android smartphones).
You can supply power on board through the Micro USB connector or to power the heads. The voltage regulator (LDO) can treat the incoming voltage from 6 V to 9 V (peak 18 V) DC. Output current for 5 V-around 3.3 Ma, for V-approximately 800 mA (keep in mind that the higher the input voltage, the lower the outgoing current). That will provide reliable power for most of your initial projects.

Package Include:
1x MEGA 2560 Pro Embedded USB CH340G ATMEGA2560-16AU Chip for arduino Mega 2560
