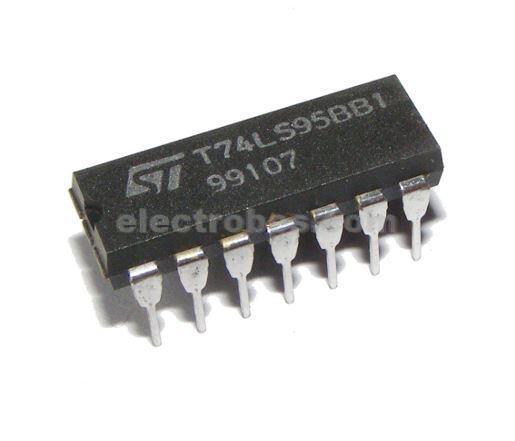

The 74LS95 is a 4-bit Shift Register with serial and parallel synchronous operating modes. The serial shift right and parallel load are activated by separate clock inputs which are selected by a mode control input. The data is transfered from the serial or parallel D inputs to the Q outputs synchronous with the HIGH to LOW transition of the appropriate clock input.
The serial shift right and parallel load are activated by separate clock inputs which are selected by a mode control input.The data is transferred from the serial or parallel D inputs to the Q outputs synchronous with the HIGH to LOW transition of the appropriate clock input.
The LS95 is fabricated with the Schottky barrier diode process for high speed.
Features & Specifications
4-bit Shift Register with Serial and Parallel Synchronous Operating Modes
Separate Shift and Load Clock Inputs
Input Clamp Diodes
Operating Temperature up to 70oC
Standard TTL Switching Voltages
