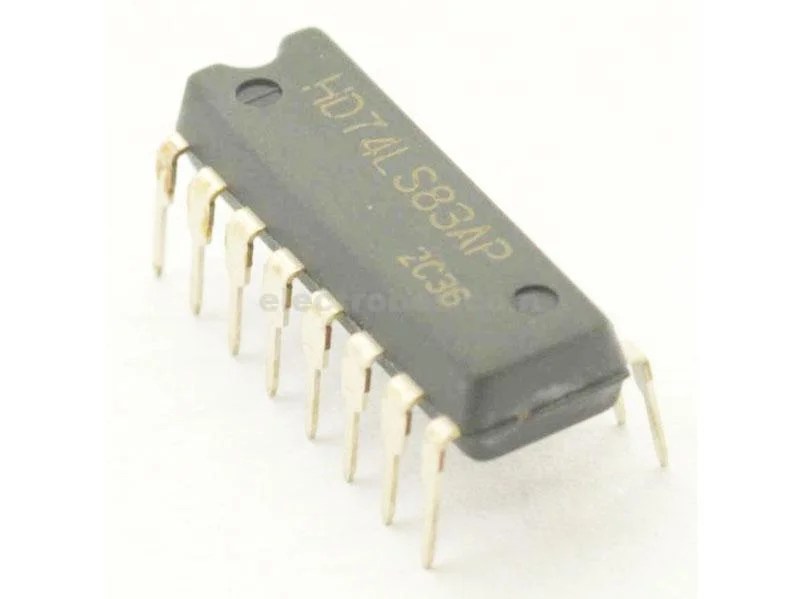

74LS83 FULL ADDER 4-Bit Binary with fast Carry IC

₨108.00

Operating voltage range: +4.75 to +5.25V
Recommended operating voltage: +5V
Maximum supply voltage:7V
Maximum current allowed to draw through each gate output: 8mA
TTL outputs
Low power consumption
Typical Rise Time: 18ns
Typical Fall Time: 18ns
Operating temperature:0°C to 70°C
Storage Temperature: -65°C to 150°C

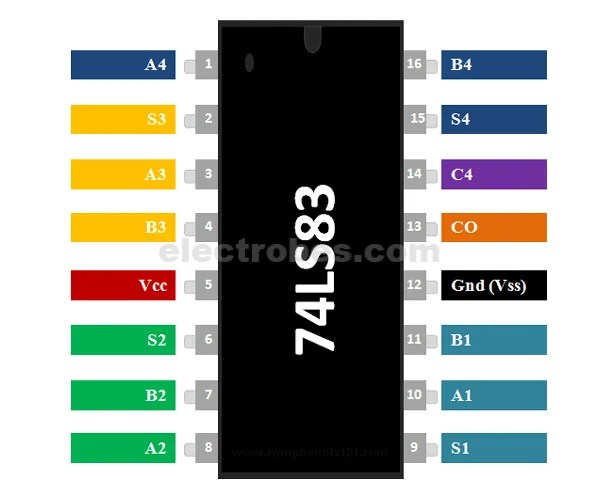

74LS83 Pin Configuration

Pin Number
Pin Name
Description

10,8,3,1
A1, A2, A3, A4
First Input for the adder circuit (Four pin for four stages)

11,7,4,16
B1, B2, B3, B4
Second Input for the adder circuit (Four pin for four stages)

13
C0
Carry Input – from previous stage if present.

9,6,2,15
S1, S2, S3, S4
Output pin for the Adder circuit (Four pin for four stages)

14
C4
Carry Out pin to cascade with other ICs.

Specifications – 74LS83

4-bit Full Adder with Carry Out
Nominal Operating Voltage: 5V
Maximum Operating Voltage: 5.5V
Output Propagation delay: 16nS
Maximum Input Low Voltage: 0.8V
Minimum Input High Voltage: 2V
Available in 16-pin PDIP, CDIP,SOIC, TSSOP packages

Where to use 74LS83 IC
Although today we have cheap microcontrollers that could perform all arithmetic operations required for our application, in early days the ICs like Adder, Counter, flip-flops etc were used for same. This way the complexity and the BOM cost of the circuit design will greatly go low.

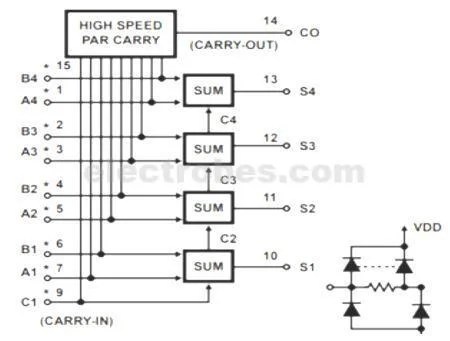

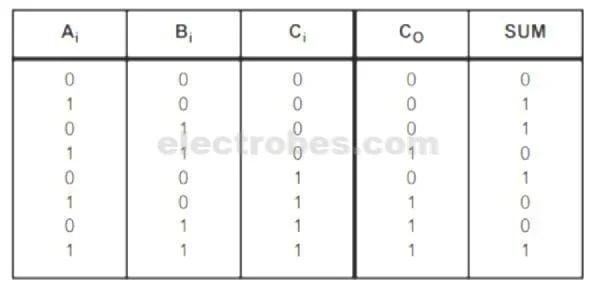

The 74LS83 is a Full Adder with Carry in and Carry out feature. It is a four stage 4-bit counter, meaning it has four individual Full adder circuits each of 4-bit inside a single package. It can also be easily cascaded if more than four stages are required.
Applications

High Speed Arithmetic operations
Miniature calculators
Counters
Simple logic control designs
