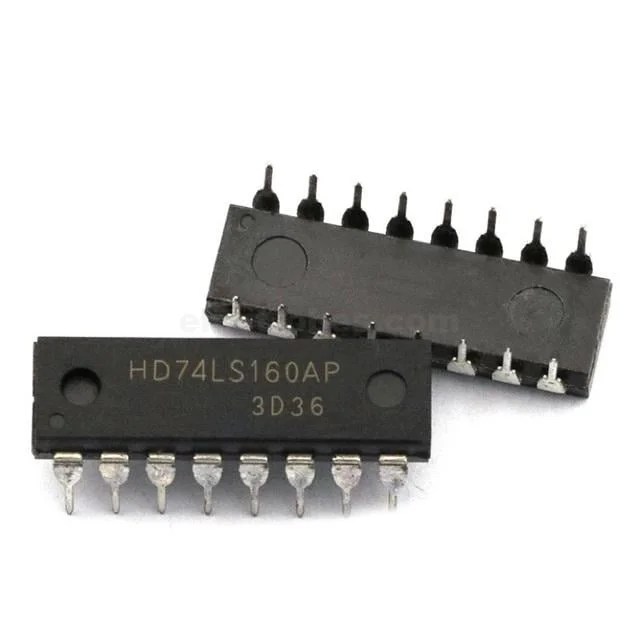

74LS160 Dual 4-Bit Decade/Binary Counter IC is a part of 74XXYY IC series. The 74LS160 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. The IC 74LS160 is smaller in size and it has a much faster speed which makes it reliable in every kind of device.
What is a Decade/Binary Counter?
A Binary Counter is a serial digital counter that counts ten digits. it resets for every new clock input. As it can go through 10 unique combinations of output, it is also called as “Decade counter”. A binary counter can count 0000, 0001, 0010, 1000, 1001, 1010, 1011, 1110, 1111, 0000, and 0001 and so on. A 4 bit binary counter will act as a decade counter by skipping any six outputs out of the 16 (24) outputs.
74LS160 Pinout
74LS160 Pin Configuration
Pin No
Pin Name
Description
1
R’
Active low synchronous input
2
CP
Clock Pulse Input
3
P0
Parallel Input Pin P0
4
P1
Parallel Input Pin P1
5
P2
Parallel Input Pin P2
6
P3
Parallel Input Pin P3
7
CEP
Count Enable Parallel Input Pin
8
GND
Ground Pin
9
PE’
Active Low Parallel Enable Input
10
CET
Clock Enable Trickle Input
11
Q3
Parallel Output Pin Q3
12
Q2
Parallel Output Pin Q2
13
Q1
Parallel Output Pin Q1
14
Q0
Parallel Output Pin Q0
15
TC
Terminal Count Output
16
Vcc
Chip Supply Voltage
Applications
Astable frequency divider or counter circuit.
Timing related applications.
Used in projects where Microcontrollers should be avoided.
You can download this Datasheet for 74LS160 4-Bit Synchronous Programmable Counter from the link given below:
74ls160 ic datasheet
