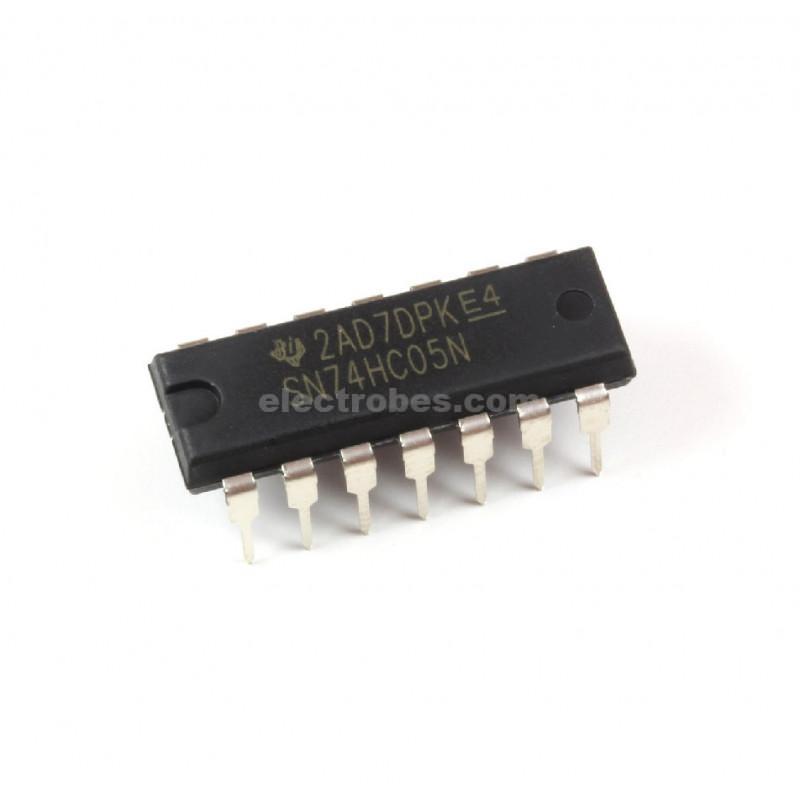

74LS05 7405 HEX Inverter SN7405 Open Collector IC

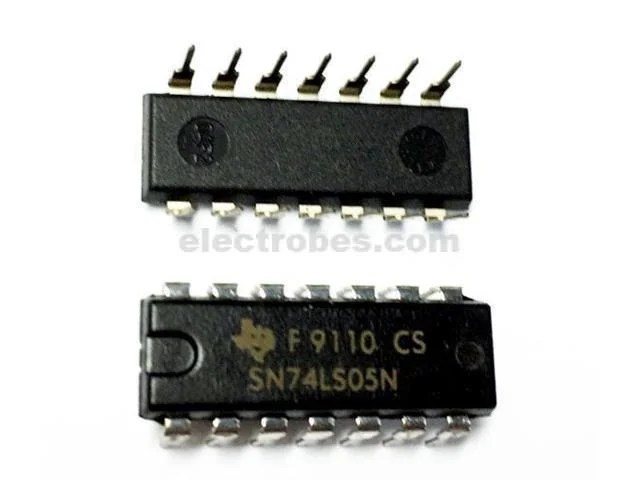

74LS05 7405 HEX Inverter SN7405 Open Collector IC - Image 2

74LS05 7405 HEX Inverter SN7405 Open Collector IC

₨48.00

IC, HEX INVERTER, 74HC05
Logic Type: Inverter
Output Current: 5.2mA
No. of Inputs: 1
Supply Voltage Min: 2V
Supply Voltage Max: 6V
Logic Case Style: DIP
No. of Pins: 14
Operating Temperature Min: -40°C
Operating Temperature Max: 85°C
Packaging: Each
Base Number: 74
IC Generic Number: 74HC05
Logic Function Number: 7405
Logic IC Base Number: 7405
Logic IC Family: HC
Logic IC Function: Hex Inverters with Open Drain Outputs
MSL: MSL 1 – Unlimited
Operating Temperature Range: -40°C to +85°C
Output Current Max: 4mA
SVHC: No SVHC (16-Dec-2013)
Supply Voltage: 5V
Supply Voltage Range: 2V to 6V

SKU: 0566 Categories: Discrete Electronic Components, General ICs, ICs

Description
Reviews (0)

74HC05 is a high-speed Si-gate CMOS device. It contains six inverters. The device has also outputs that are open-drain. Therefore, can be connected to other open-drain outputs to implement active-LOW
wired-OR or active-HIGH wired-AND functions. 74HC05 suitable for use in automotive applications.
Features:

Automotive product qualification in accordance with Automotive Electronics Council (Grade 1).
Operating temperature ranges between -40°C to +85°C and from -40°C to +125°C.
Supply Voltage between 2.0 V to 6.0 V.
Also has a CMOS level Input levels.
Lastly, has Multiple package options
