74LS04 Pinout

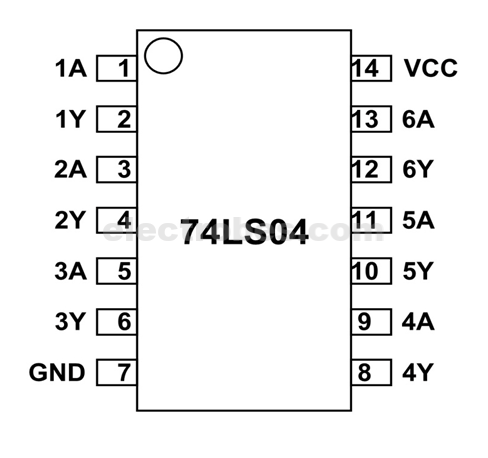

74LS04 Configuration
Pin No
Pin Name
Description
1
1A
INPUT of GATE 1
2
1Y
OUTPUT of GATE 1
3
2A
INPUT of GATE 2
4
2Y
OUTPUT of GATE 2
5
3A
INPUT of GATE 3
6
3Y
OUTPUT of GATE 3
7
GND
Electrical Ground
8
4Y
OUTPUT of GATE 4
9
4A
INPUT of GATE 4
10
5Y
OUTPUT of GATE 5
11
5A
INPUT of GATE 5
12
6Y
OUTPUT of GATE 6
13
6A
INPUT of GATE 6
14
Vcc
Supply voltage of the chip
74LS04 Key Features & Specifications
Supply voltage range: +4.75V to +5.25V
Maximum supply voltage: +7V
Maximum current allowed to draw through each gate output: 8mA
Totally lead-free
TTL outputs
Maximum Rise Time: 15ns
Maximum Fall Time: 15ns
Operating temperature: 0°C  to 70 °C
74LS04 Hex Inverter Applications
The 7404 NOT gate IC has a number applications, a few are listed below:
General purpose logic
Servers
Memory units
PCs and notebooks
Digital Electronics
Networking
Digital systems
74LS04 Datasheet
You can download the 74LS04 Hex Inverter IC / NOT Gate IC from the link given below:
Download Datasheet
