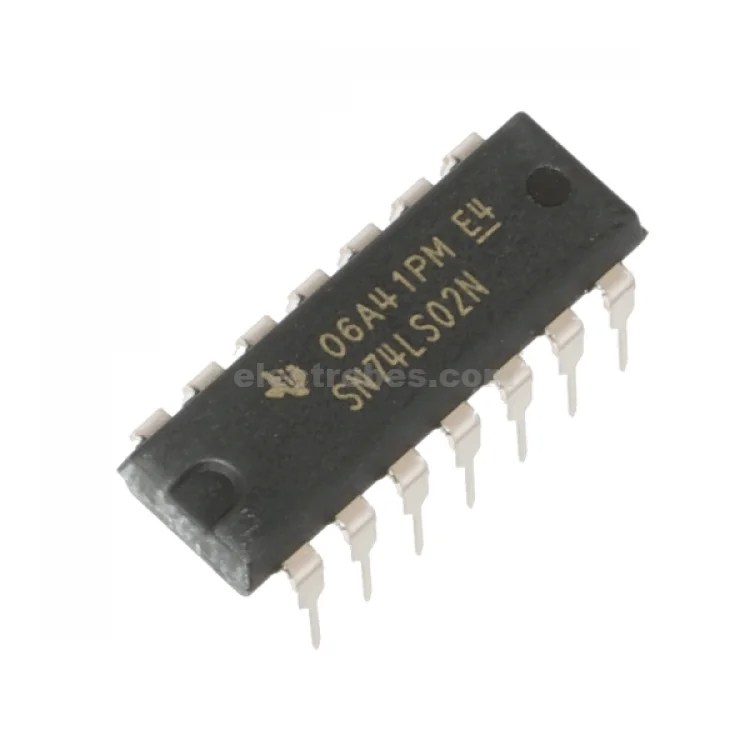

74LS02 Quad 2-input NOR Gate IC
74LS02 Quad 2-input NOR Gate IC - Image 2
74LS02 Quad 2-input NOR Gate IC - Image 3
, ,

74LS02 Quad 2-input NOR Gate IC

₨54.00

Operating voltage range: +4.75 to +5.25V
Maximum supply voltage: 7V
Maximum current allowed to draw through each gate output: 8mA
TTL outputs
Low power consumption
Maximum ESD: 3.5KV
Typical Rise Time: 15ns
Typical Fall Time: 15ns
Operating temperature :0°C  to 70°C
Storage Temperature: -65°C  to 150°C

Operating temperature: 0°C to 75°C

SKU: 0401 Categories: , ,

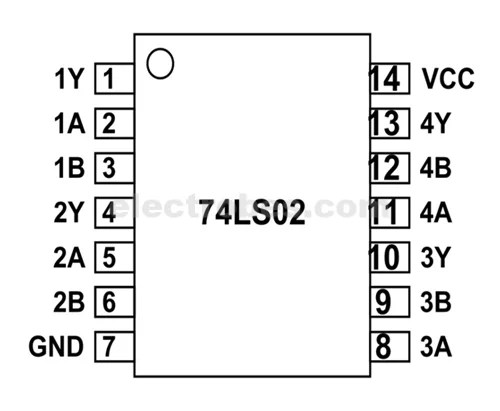

Pin Number
Description

NORGATE 1

2
1A-INPUT1 of GATE 1

3
1B-INPUT2 of GATE 1

1
1Y-OUTPUT of GATE1

NORGATE 2

5
2A-INPUT1 of GATE 2

6
2B-INPUT2 of GATE 2

4
2Y-OUTPUT of GATE2

NORGATE 3

8
3A-INPUT1 of GATE 3

9
3B-INPUT2 of GATE 3

10
3Y-OUTPUT of GATE3

NORGATE 4

11
4A-INPUT1 of GATE 4

12
4B-INPUT2 of GATE 4

13
4Y-OUTPUT of GATE4

SHARED TERMINALS

7
GND- Connected to ground

14
VCC-Connected to positive voltage to provide power to all four gates
