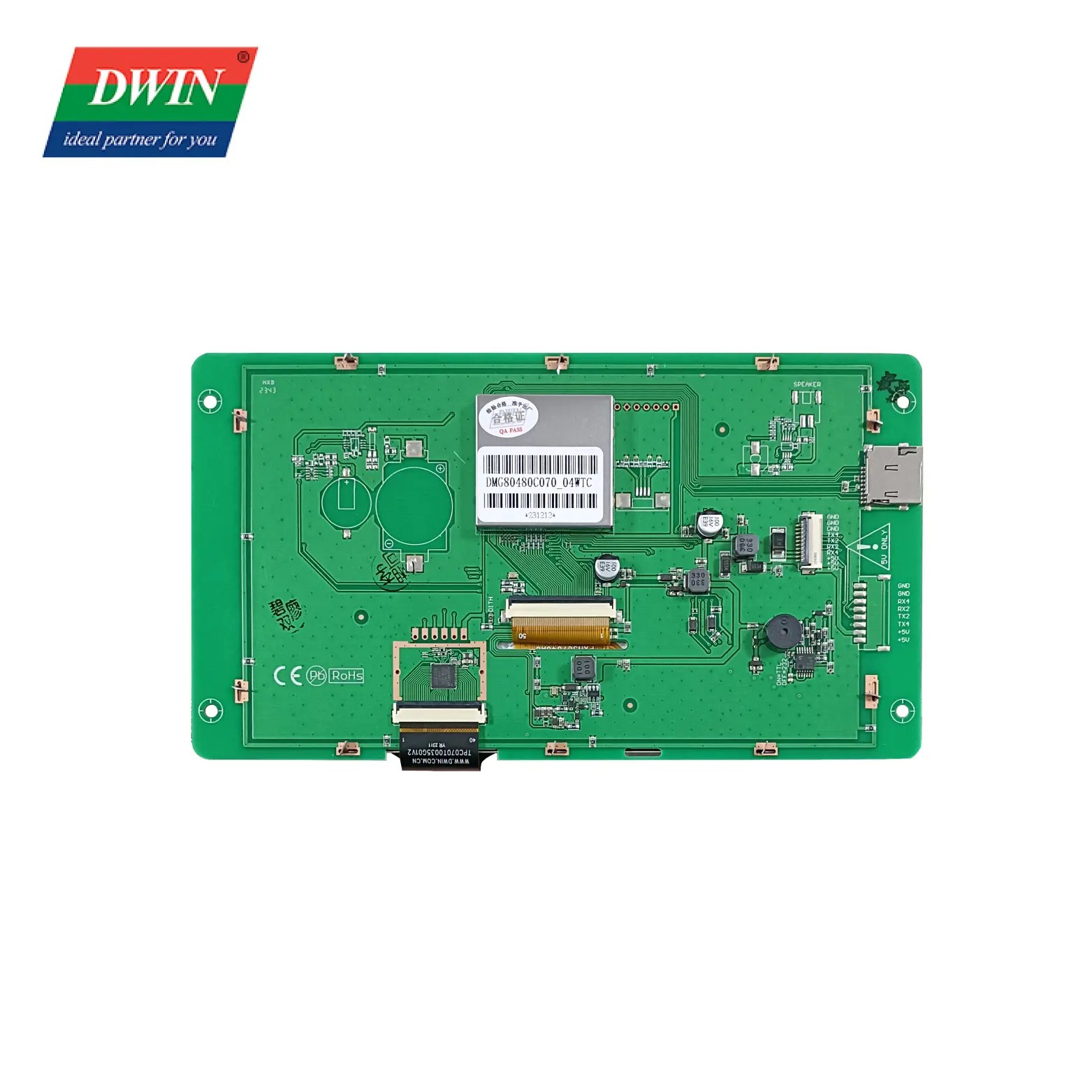

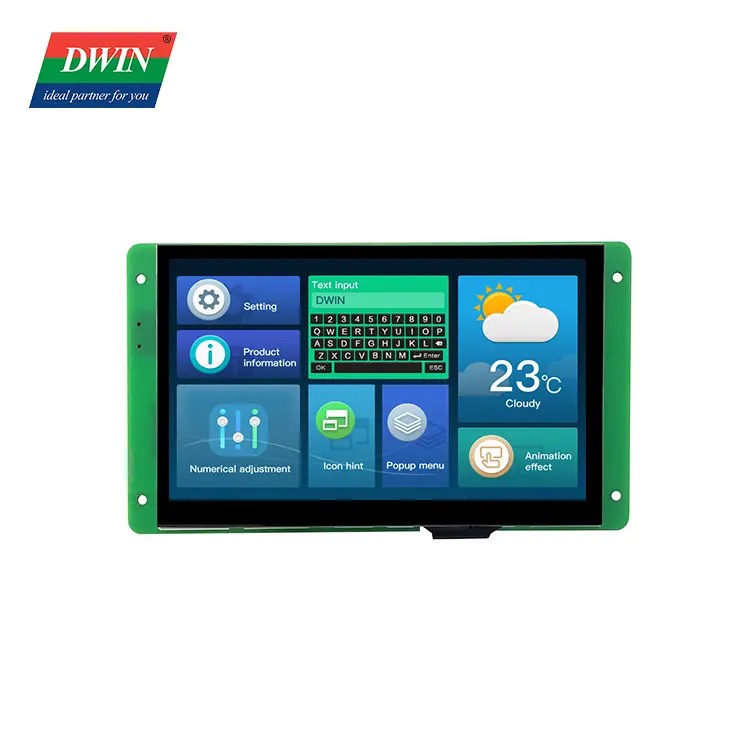

7 Inch HMI LCD Display Touch Panel DMG80480C070_04WTC (Commercial grade)

The 7 inch HMI LCD Touch Display is a Seamless Human Machine Interface (HMI) display module solution that provides a control and visualization interface for any Raspberry Pi and Arduino kits.

DWIN 7 Inch HMI LCD Display Capacitive Touch Panel DMG80480C070_04W (Commercial grade) LCD Screen
Features:

Based on T5L0, running DGUS II system, commercial grade.;
7.0-inch, 800*480 pixels resolution, 262K colors, TV-TN-TFT-LCD.
No touch screen/Resistive touch screen/Capacitive touch screen Optional;
TTL/RS232 interface; 10Pin_1.0mm connection wire;
Download via SD card or on-line serial port;
Easy-to-use DWIN DGUS V7.6 GUIs Development, no coding skills required;
Dual Development System: DGUS Ⅱ/TA(Instruction set);
TV viewing angle, 70°/70°/40°/30° (L/R/U/D);
With GUI&OS dual-core, GUI with rich controls, DWIN OS kernel is open to the user for the second-development via DWIN OS language or KELI C51.

Package Includes:
1 x 7 inch HMI display screen
