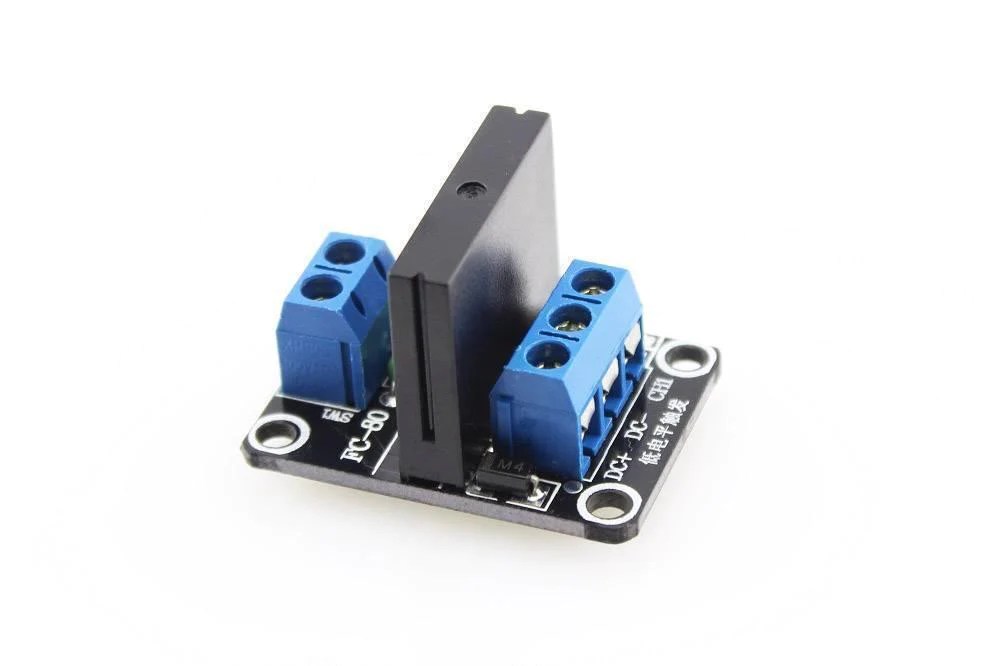

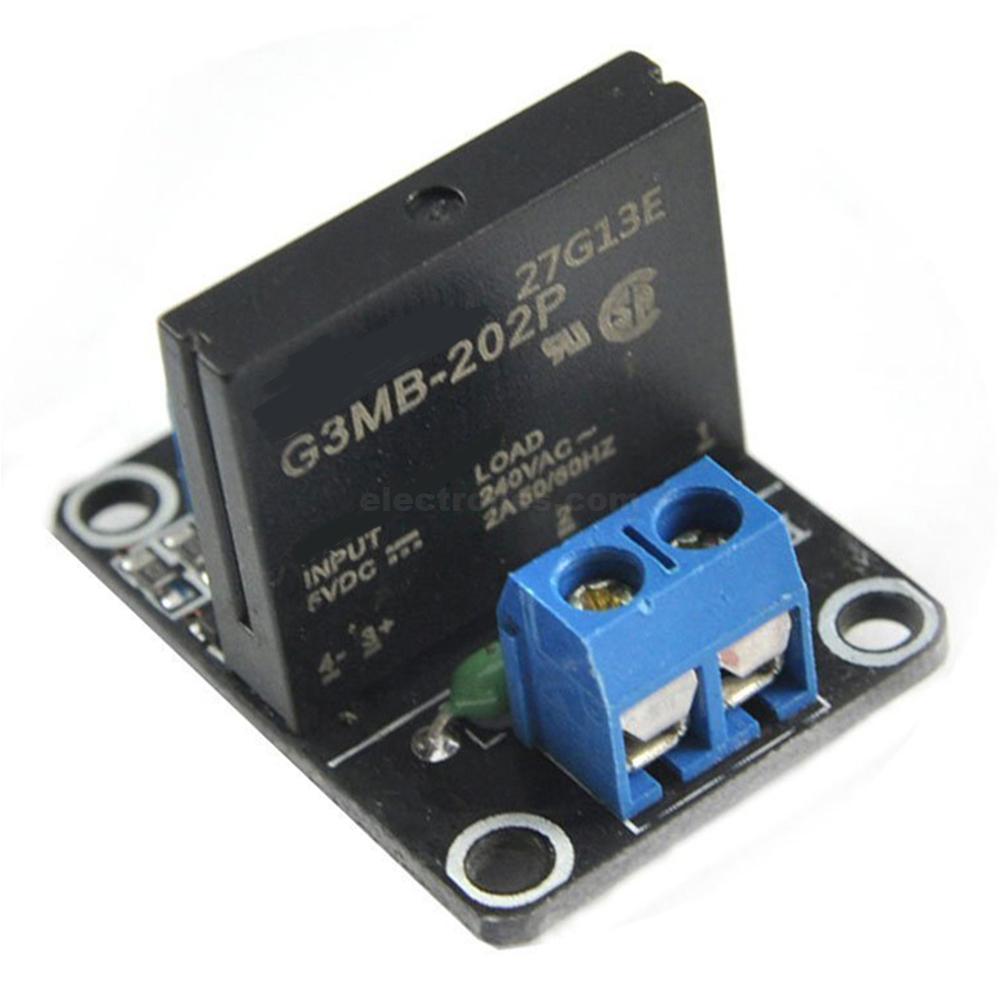

5V 1 Channel SSR Low Level Solid State Relay Module AC 240V/2A
Features:
The rated current of 1 channel SSR module is 2A, and the voltage is DC 5V.
LOW LEVEL TRIGGER: In industrial control, called PNP trigger, negative trigger, when the voltage between the trigger terminal and the negative pole of the power supply is 0V or close to 0V.
CH TERMINAL: The CH terminal is the trigger terminal of the module. When there is a trigger signal, the output switches (A, B) of the solid state relay will close. The load will be conductive.
WITH FUSE: With fuse to ensure the safe use of this module. High sensitivity.
STABLE PERFORMANCE: Stable performance of electronic components, so that your equipment can work stably.
Specifications of 1 channel SSR:
Control Voltage: 5V DC
Static Current: 0mA
Working Current: 12.5mA
Trigger Voltage: 0-1.5V
Trigger Current: 2mA

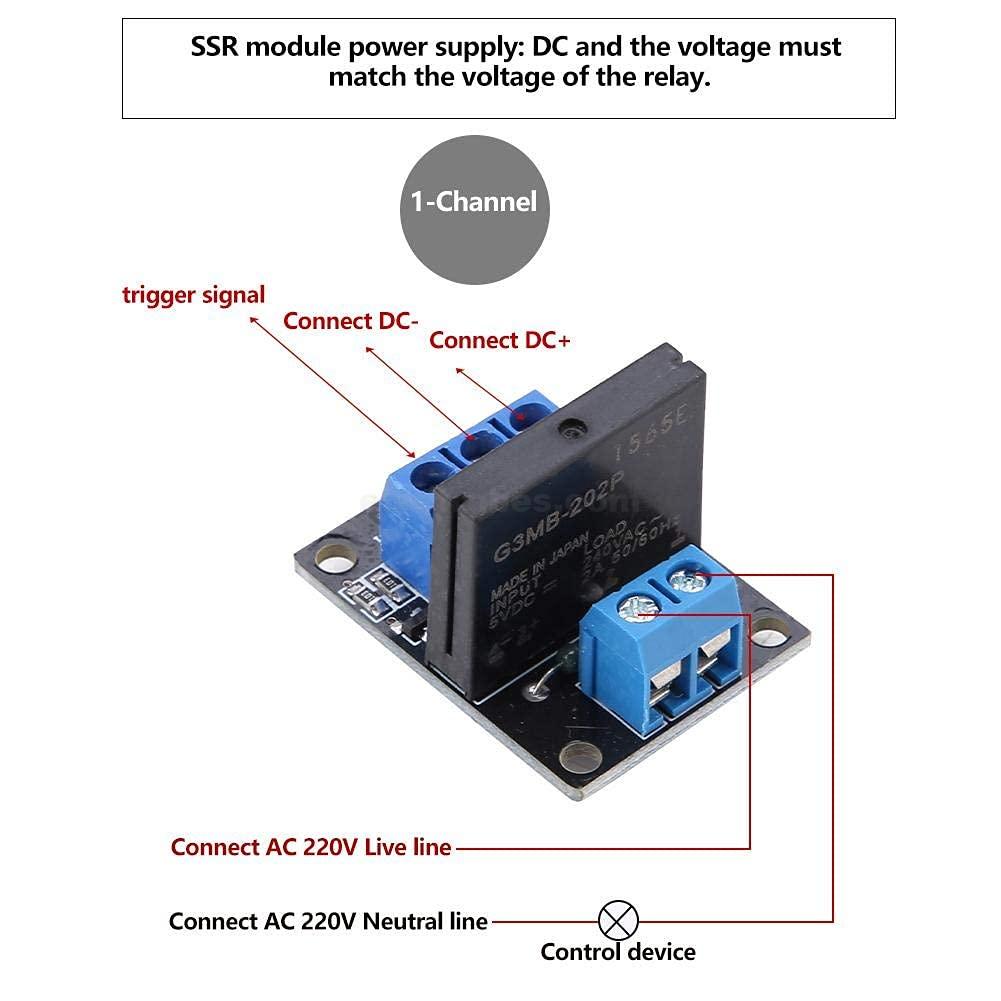

Module Interface:
DC+: Connect power positive
DC-: Connect power negative
CH: Relay module signal trigger end(Low-level trigger is effective)
Wiring: When triggered by low voltage, a current will get through.
