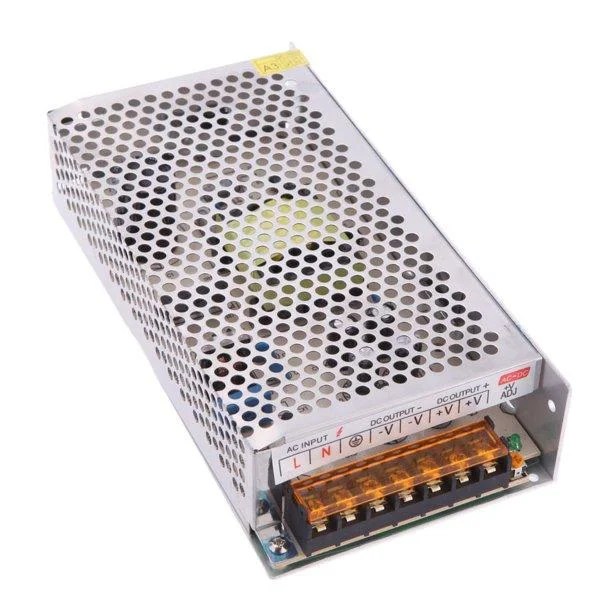

48V 5A 240W Switching Mode Power Supply SMPS Adapter
A 48V switched-mode power supply / switch-mode power supply / switching-mode power supply (SMPS) is an electronic circuit that converts power using switching devices that are turned on and off at high frequencies, and storage components such as inductors or capacitors to supply power when the switching device is in its non-conduction state. The 48V 5A SMPS Adapter uses High-temperature resistant copper enameled wire and adopts a double winding U-shaped iron core.
Features Of 48V 5A Switching Transformer Dc Power Supply:
Good anti-interference performance and high reliability.
Low operating temperature and long service life.
Wide input voltage range, (100-240V) in line with global usage standards.
Good insulation performance and high electric strength.
Full load high temperature burning machine, 100% aging test.
Protection function: Overload protection, Short circuit protection
It recovers automatically after protection
The device is great for Home Appliances as a switching power supply.
Specifications Of 48V 144W Switched Mode Transformer SMPS For LED lighting:
Input voltage: 110V-220V AC
Output voltage: 48V DC
Output current: 5A
Output power: 240W
Protection function: Overload protection, Short circuit protection
Security Certification: CE, ROHS, FCC
Working Humidity and Temperature: -20 ° C – +60 ° C, 20% – 90% RH
Product dimension: 198 x 98 x 42mm
Applications Of LED SMPS 48V 240W :
LED Lighting
RGB LED Strip
SMD
CCTV Cameras
Street Light
Lawn Lamp
Advertising Article Screen
Note:
The power supply is 100% full, but some power is lost when wiring. Therefore, it is recommended to use 80-85% of the power.
The input voltage should be within the specified working range.
It is strictly forbidden to use in a high-temperature environment, the power supply should have good heat dissipation space and environment.
Do not install the power supply on flammable materials, keep away from gas stations or places where smoking is prohibited.
Package Include:
1x Switching Power Supply SMPS 48V 5A 240W
