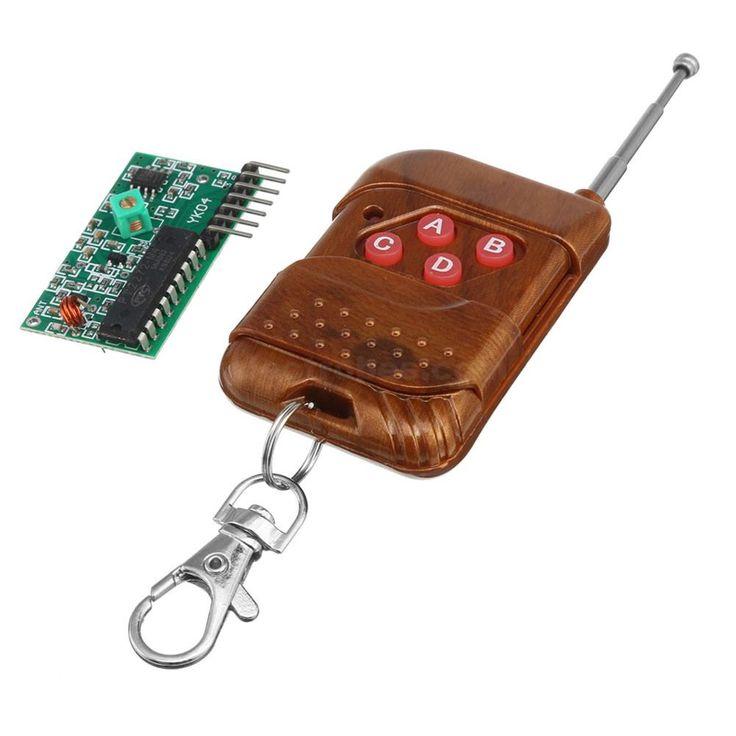

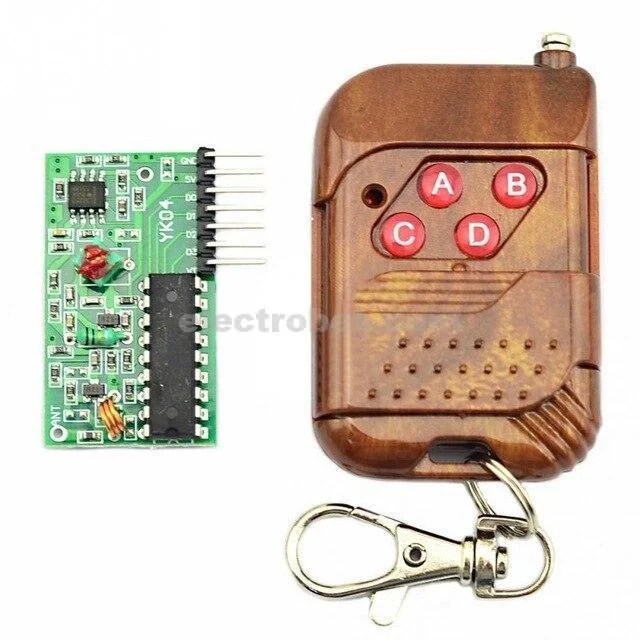

4 Channel NIC2262/2272 Wireless Remote Control with Receiver Module
4 Channel RF Remote Transmitter and Receiver allows to remotely control four appliances. RF Remote Control provides 4 momentary outputs that can be wired to relays and control home appliances, lights, motors, light dimmers, robotic devices, RC cars, computer, etc. RF transmitter provides up to 150m range. Selection of custom address codes allows to operate more than one remote control system in the same area or to control one receiver with multiple transmitters. If required momentary outputs can be converted to toggle with low cost digital 4013 IC.
Specifications
4 Momentary Outputs
150m Transmission Range
Rock-solid oscillator provides reliable operation
Valid transmission LED status through VT connection
High noise immunity
Standard header connection (breadboard compatible)
Selection of custom address codes allows to operate more than one unit in the same area or controlling the same receiver with multiple remotesÂ
RF Transmitter SpecificationsÂ
Voltage Supply: 12V/ 27A Alkaline Battery(Not Included)
Transmission Frequency: 433MHz
Transmission Range: 150m
Dimensions: 62 mm x 38 mm x 14 mmÂ

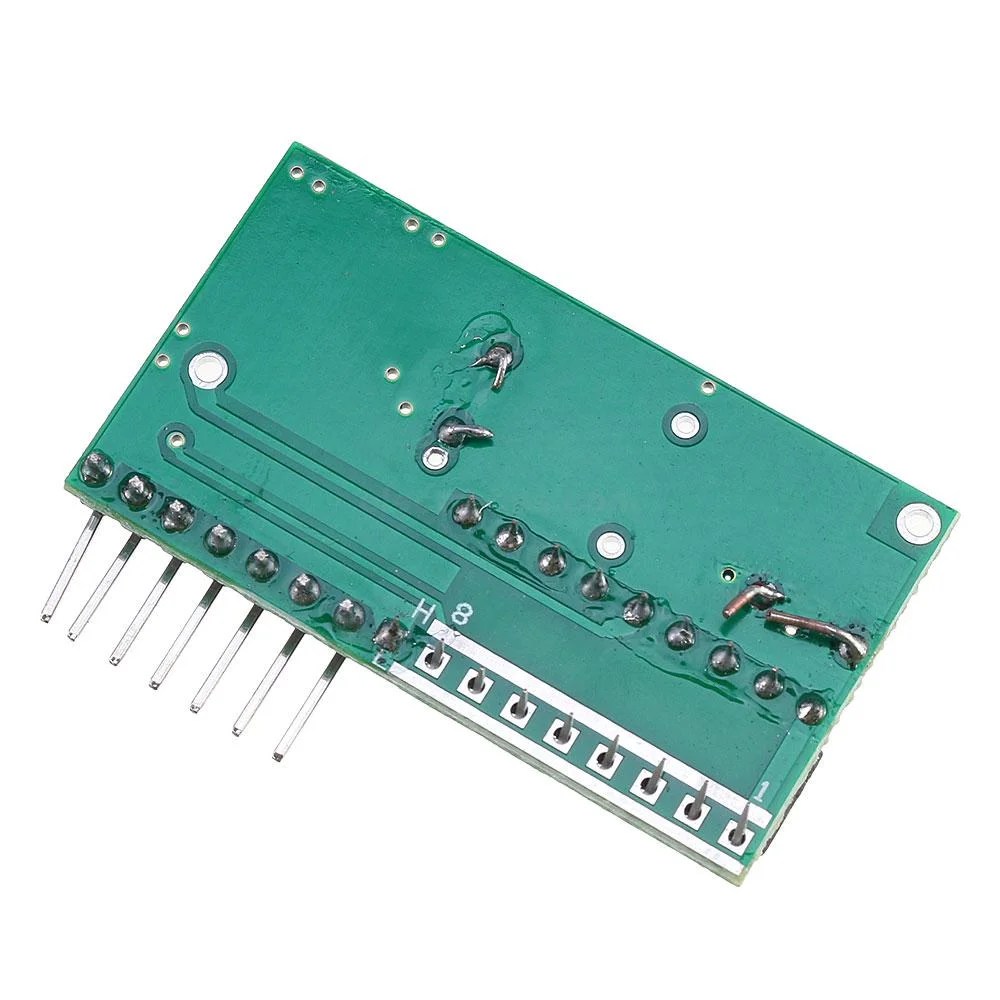

RF Receiver Specifications
Voltage Supply: 5V
Transmission Frequency: 433MHz
Output Mode: Momentary
Power Consumption: 5 mA
Receiving Sensitivity: -101 dbm
Output PINs: GND, 5V, D0, D1, D2, D3, VT (Status LED)
Dimensions: 41 mm x 22 mm x 6 mm
Receiver connect:
VT: Decoding valid indication output pin
D0-D3: Four control signal output pins
VCC: + 5V
GND: – Negative Electrode
Note:
There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3 of. Press the buttons transmit signals, the corresponding data bit is output high.
Battery isn’t included in the package.
Package:
1 X Remote control
1 X decoding receiver board
