1N4739A 9V 1W ZENER Diode
Applications of Diode:
Used in Voltage protection circuits
Can be used as low current voltage regulator
Input voltage protection for Microcontrollers or other ICs
Voltage stabilizing circuits
Features:
Silicon Planar Power Zener Diodes
Standard Zener voltage tolerance is ± 5% with a “B” suffix. Other tolerances are available upon request.
Mechanical Data:
Case: DO-41 Glass Case
Weight: approx. 0.13 g

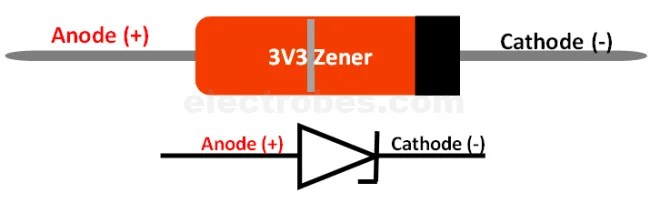

Pin configuration:
Pin No.
Pin Name
Description
1
Anode
Current always Enters through Anode
2
Cathode
Current always Exits through Cathode
Related Documents:
Datasheet for 1n4739A 9V zener diode
