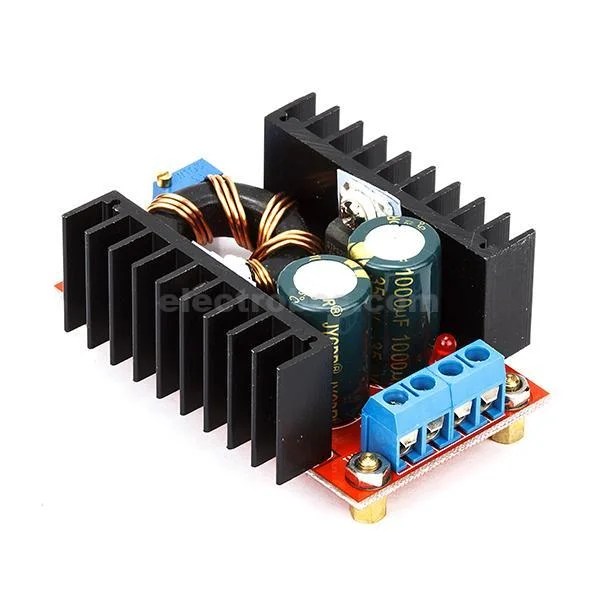

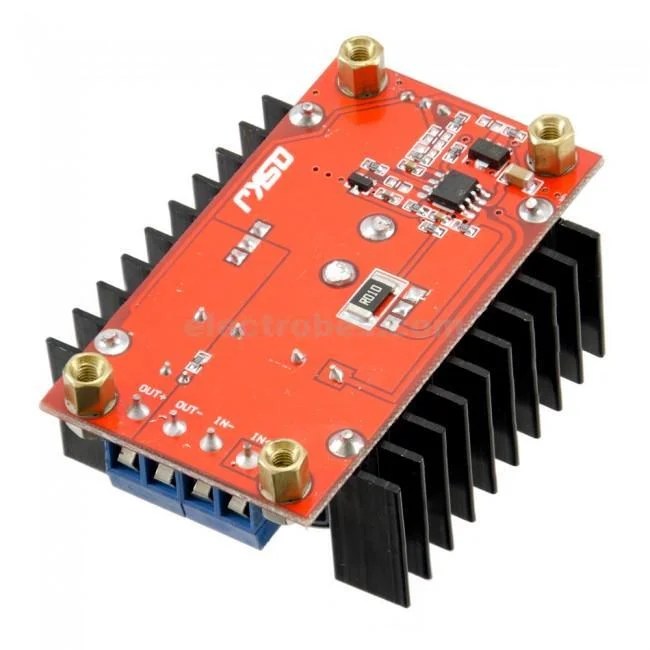

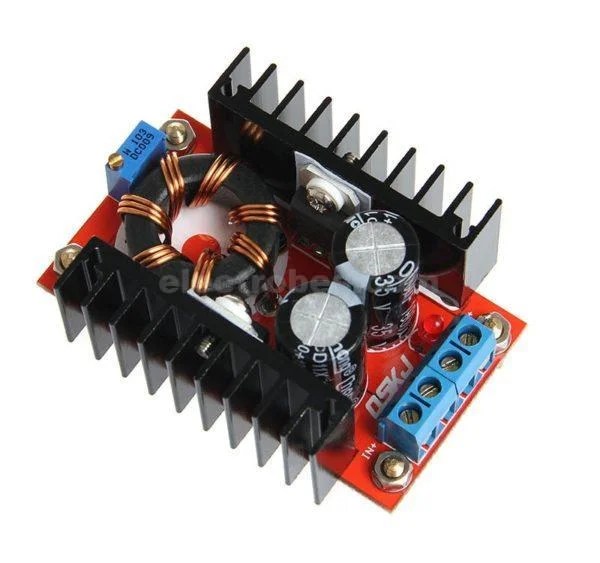

150W DC-DC Boost Converter module allows you to step up an input voltage as low as 10V and set the output to 12V-35V. The output voltage will be higher than the input voltage. The boost converter design is based on popular Texas Instrument’s UC3844 current mode PWM controller chip.
Consider this exemplar; say you want to power your laptop from a car battery, well this module could do that. Or run a 24~35V rated equipment on a single lead 12V lead acid battery. Robotics is another meadow of operation where you want to run higher voltage DC motors on 12V batteries.
We recommend enhanced cooling when operated at an environmental temperature greater than 40C or when the load wattage is greater than 50W. As the board lack short circuit protection, adding fuses or protection circuit at the input port would be great.
Features:
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery to drive 19V 3.42A notebook, the module temperature is about 45°C.
For DIY an output adjustable vehicle power supply: connect the 12V input, and output could be freely adjust among 14-35V.(the output voltage can not be less than the input voltage)
Can be used as a car laptop power supply: connected to 12V power supply, regulate the output voltage as your notebook’s.
Can be used as a step-up charger: using a 12V power supply to charge a storage battery higher than 12V.
Applications:
High power LED driver.
Charging the lithium battery (or the lead accumulator).
Power supply installed in the vehicle.
Low voltage system power supply.
6V 12V 12V 14V battery charge 24V.
Integrated portable power supply.
Regulated power supply.
Low voltage power supply system.
