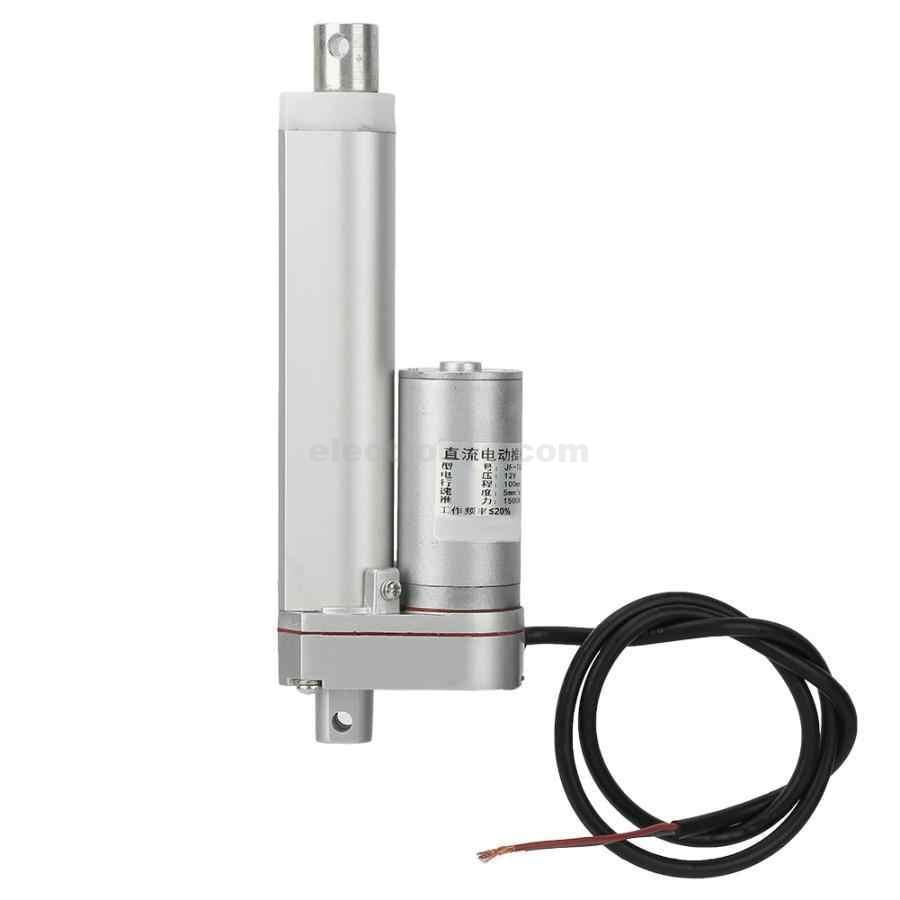

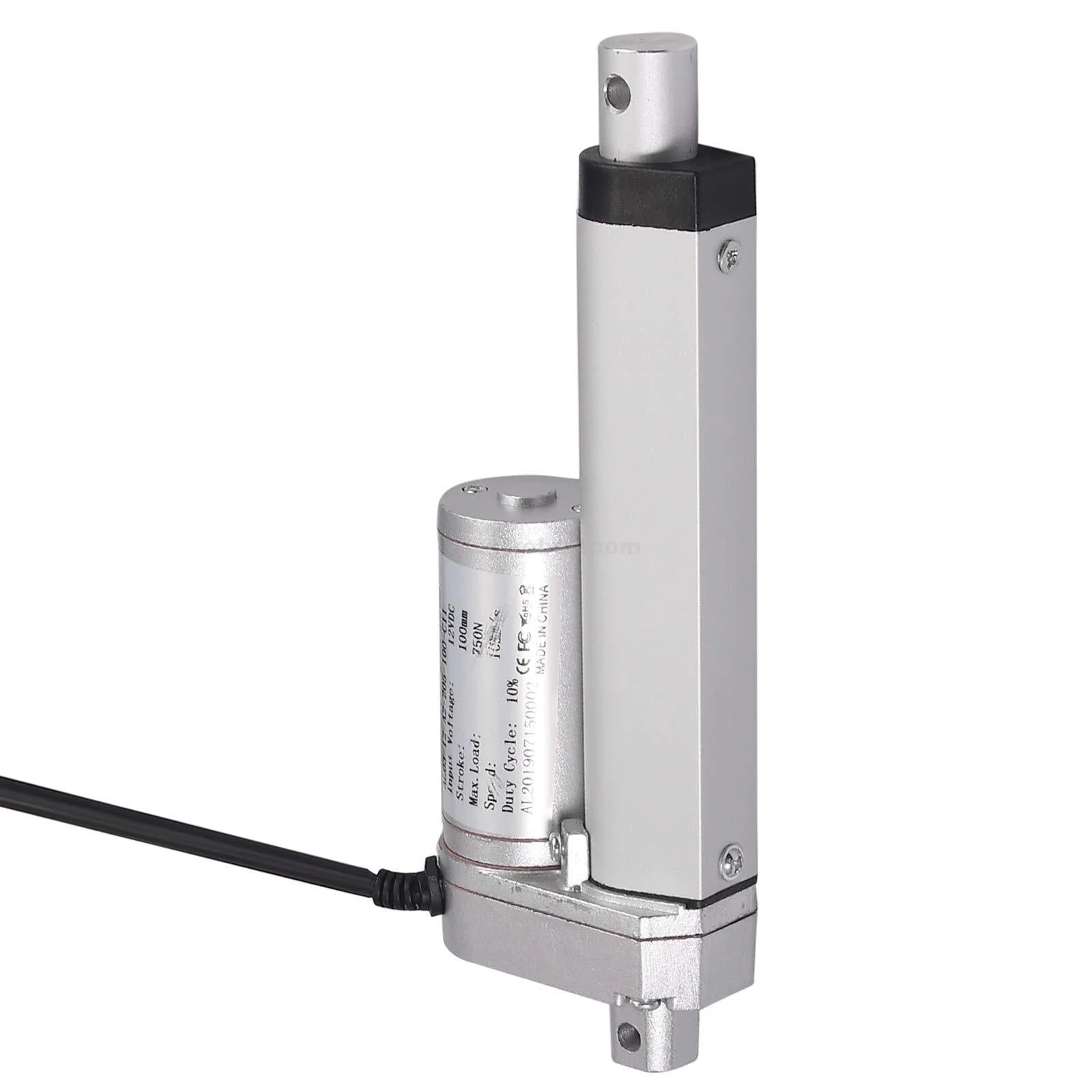

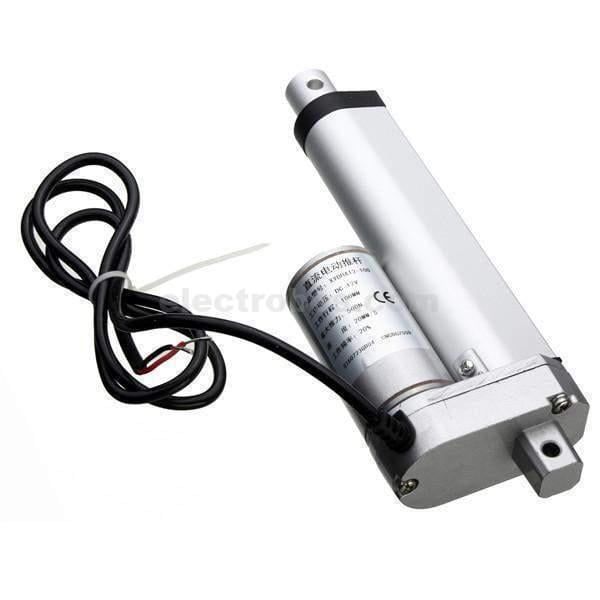

Description:
This miniature linear actuator is using for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. Built-in limit switches, not adjustable after leave factory. Available in 50mm, 100mm, 200mm and 300mm stroke.
Applications
Autos
Solar tracking system
Agricultural machinery
The wedding system
Industrial electric lifting system
Chair for medical use
Electric wheelchair, Massage Chair, dental chair
The medical electric bed, surgical bed, traction bed
Electric equipment such as
Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc
Features
Reliable performance
Stable running
The same characteristics of push and pull
Good environment adaptability
Heavy Duty and Long Lasting Motor
High-quality aluminum alloy material
High-performance motor
Built-in high quality limit switch
Specifications
Rated Voltage: DC 12V
No-load current<1A
Max load current=3A
Stroke Length: 200mm
Load capacity: 500N
Speed: 20mm/s
Duty cycle: 20%
Material: Aluminum alloy
Net weight: 1000g
Package Included
1 x Linear Actuator
