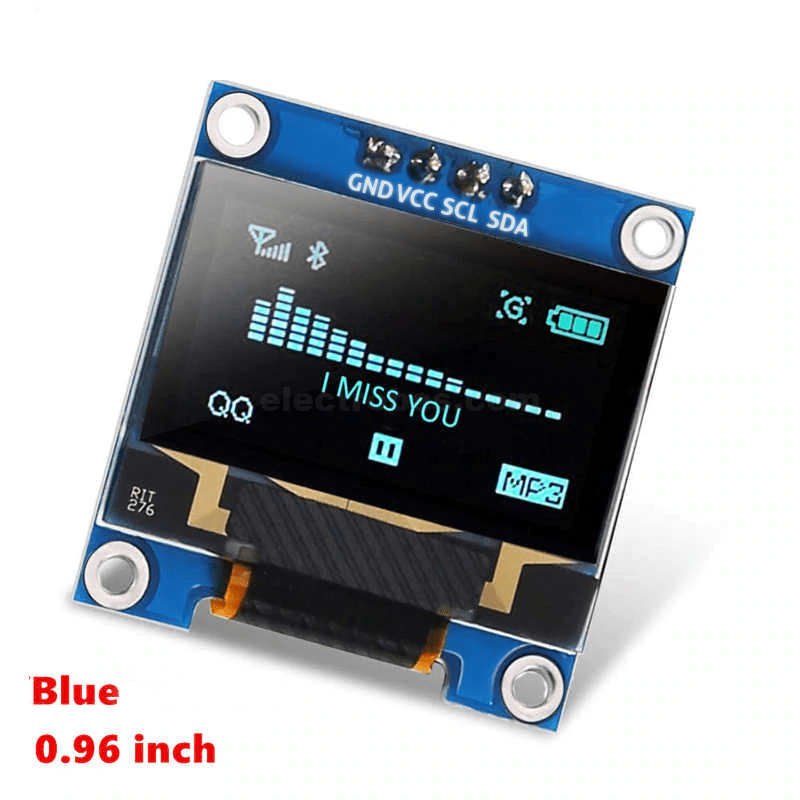

0.96 Inch 128×64 IIC I2C OLED Blue Display Module For Arduino

₨576.00

This OLED display module is small, only 0.96″ inch diagonal, it is made of 128×64 individual blue OLED pixels, each one is turn on or off by the controller chip. It has white backlight and can work without backlight, OLED display is higher compared to that of LCD display, you will like the miniature for its crispness. This module uses I2C to communicate with microcontroller such as Arduino.

0.96 Inch 128×64 IIC I2C OLED Blue Display Module For Arduino
0.96-1W is the graphic OLED display module made of 128×64 white OLED pixels with breakout board, diagonal is only 0.96 inch. The controller IC SSD1306, communicates via I2C/3-wire/4-wire serial interface. Thanks to breakout, the total pin number is only 7, typical power supply is 3.3V. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast, extremely wide viewing angle and extremely operating temperature. The fpc of OLED and pin header is not soldered on the breakout board to avoid damage.
It’s easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded System.
Interface: IIC/I2C

GND: Power Ground
VCC: 2.2V-5.5V
SCL: CLK clock (High level 2.2V-5.5V)
SDA: MOSI data (High level 2.2V-5.5V)
